Fingerprint bluetooth door lock

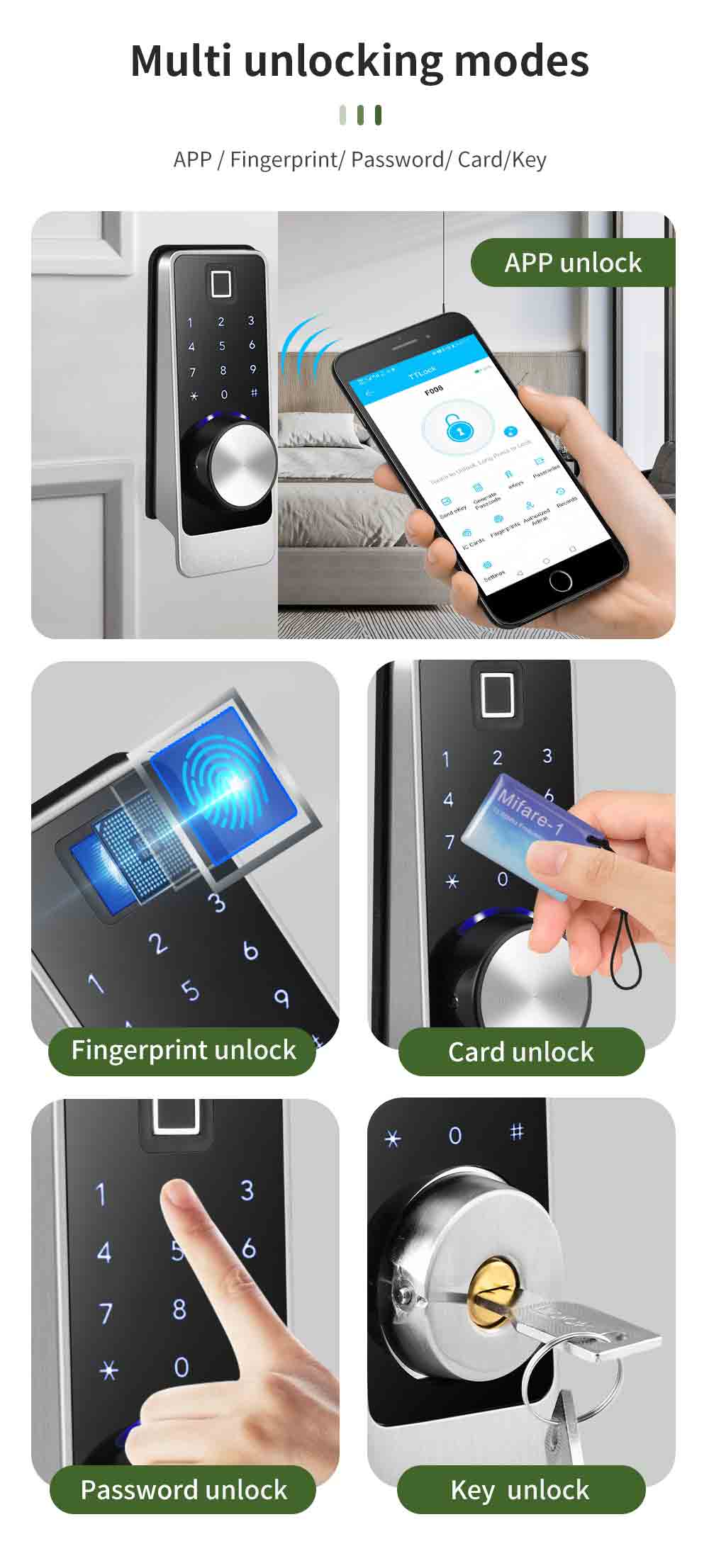

Thanks to the development of technology, modern people’s lives require mobile phones to be settled, mobile payment, mobile phone unlocking has become the norm of life. The fingerprint bluetooth door lock not only supports remote unlocking by mobile phones, remote sharing passwords but also unlocking by fingerprints, passwords, cards, etc.

fingerprint bluetooth door lock


Power supply 4.5 ~ 6.5V(4 pcs AA alkaline batteries)
Bluetooth standard 4.0 BLE (adopt Nordic 51822 blue tooth chip)
Support phone system Android 4.3/IOS 7.0 above
Alarm voltage 4.8V ±0.2VFingerprint bluetooth door lock
Static current ≤60μA
Dynamic current ≤200 mA
Operating temperature -40 ~ 70℃
Operating humidity 20 ~ 93%RH
FAR ≤0.001%
FRR ≤1.0%
Fingerprint capacity 200pcs
Opening time around 1.5 seconds
Mobile phone app no limitation
Card (Mifare1 card) capacity 100 pcs
Password capacity APP send password no limitation
Custom password 150 pcs

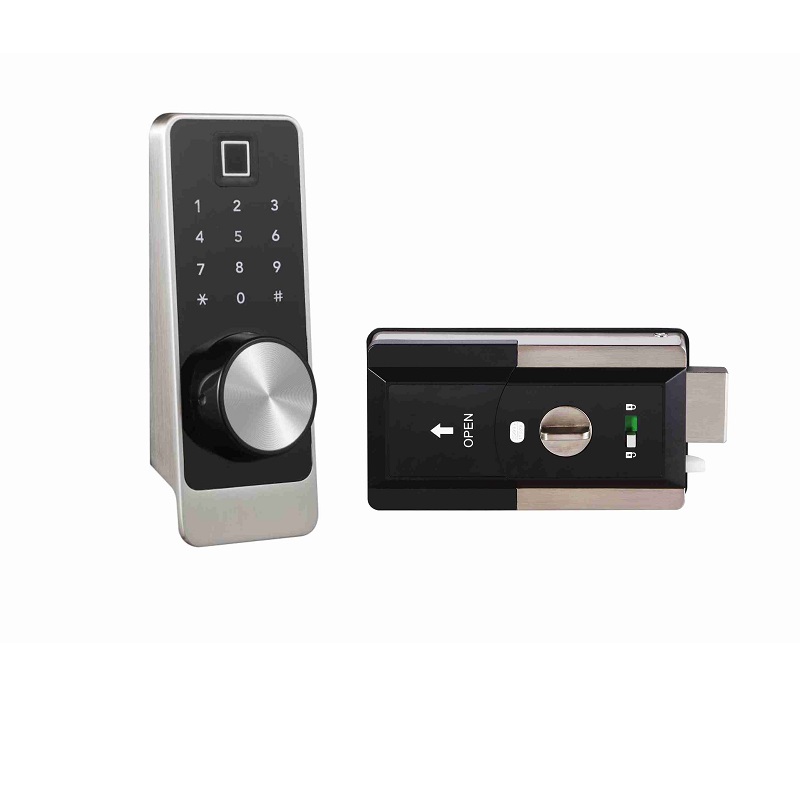

Available mortise US STANDARD DEADBOLT/Rim lock
OEM/ODM Services yes
MOQ for Logo 100
MOQ for package 500



Package & Shipping Term

Standard Export Quality Inner Box and Carton Packing

The Package of smart door lock including Front panel, rear panel, Mortise and screw bag, user manual.

Model No.:M8FD package information:
Inner box: 24 x 21.5×11.40cm 1.10kg/pc
Carton: 45 x 25x58cm 10pcs/ctn(12.00kg)

Model No.:M8FR package information:
Inner box: 24 x 21.5×11.40cm 1.60kg/pc
Carton: 45 x 25x58cm 10pcs/ctn (17.00kg)

Suitable for shipping and air freight.

Shipping for fingerprint lock:
DHL/FedEx/UPS/TNT for samples, door to door service.
By air or by sea for bulk goods, airport/Seaport receiving goods.
Support Customers are specifying freight forwarders or selected shipping methods!
Delivery time: 7-15 working days. Accurate delivery based on your quantity.
