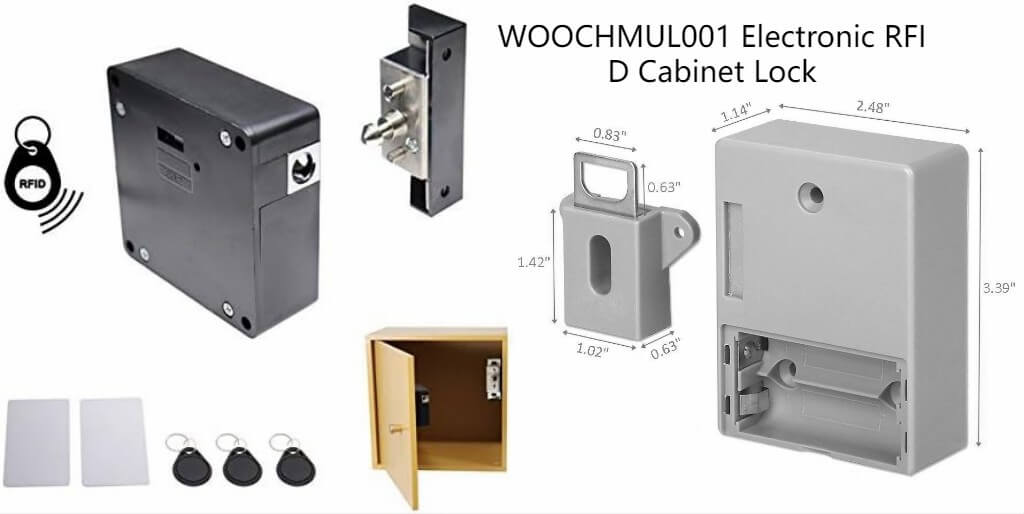

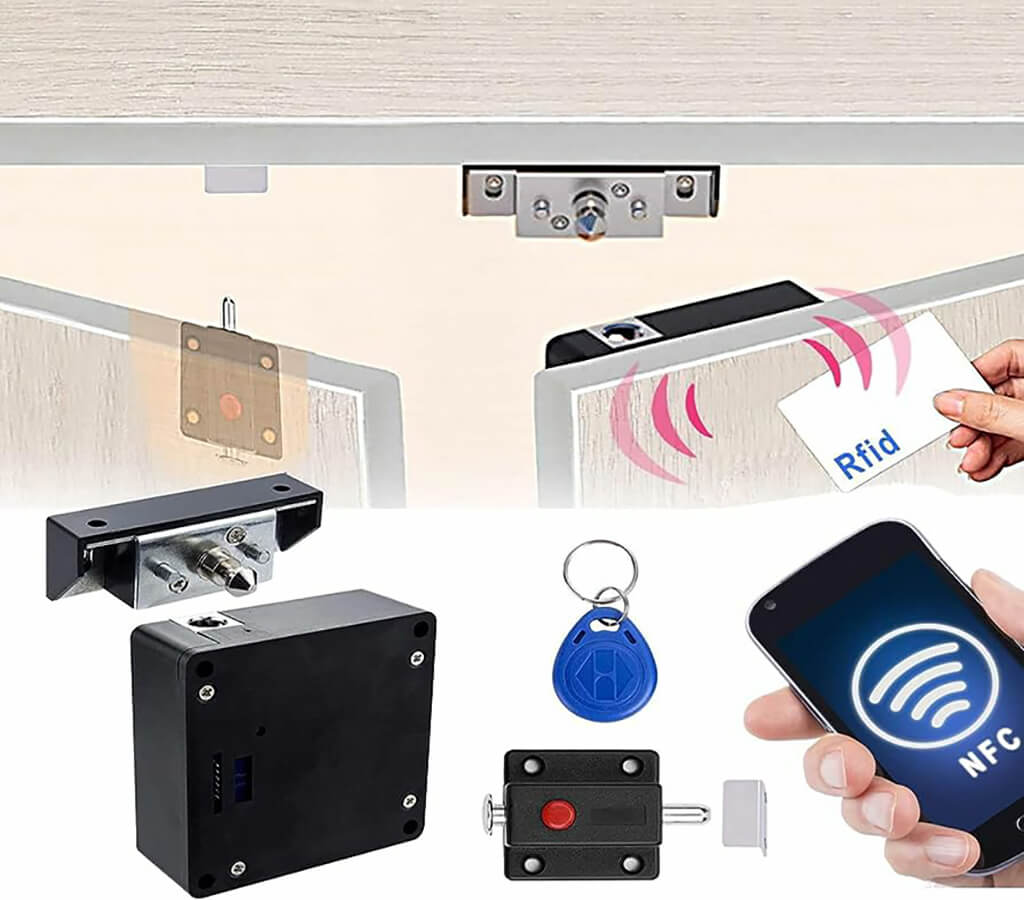

Custom RFID Cabinet Lock

  • RFID cabinet lock (Radio Frequency Identification) is a technology that identifies locks by radio waves.

  • Handhold controls all of the card programming, deleting and audit trial;

  • Master card is used to control one whole project and for emergency unlocking;

  • Any mifare card can use any one locker at any time;

  • Occupied lock will blinks to show the lock in use;

  • Stainless steel latch and ABS plastic lock body, durable and anticorrosion.

  • Easy to operate. Has function of auto-rebounce and auto-lock.

  • High-speed proximity reader recognizes cards in less than 0.25sec

  • Low power alarm, door ajar alarm, anti-tampering alarm

  • Widely used in Gymnasium, School, Airport, SPA, … gym room, pool locker, office staff,document storage cabinet

No more external card for RFID cabinet lock

Gyms – your VIP member card is locker key. School– Student ID card is the locker key.

Fully automatic SMT(surface mount)technology,which effectively guarantees the high quality of the Electronic Cabinet Lock.

Download Catalogue

Main Features of RFID Cabinet Lock

One card solution

Any Mifare card can use any one locker at any time

Handhold management

Simple program & Operation just by a handhold;

Card reader No.

Card No. Reader saves the forgetful user.

Master card

Encrypted master card for high-rank security.

Wrong key

Wrong code or illegal card alert

Anti-picked alarm

Keep alarming when door has been break

Indicator light

Your Content Goes Here

Power supplier

Powered by 3 AA battery & external power backup available.

Low battery alert

There is consecutive 8 beep sounds as alarm from the lock.

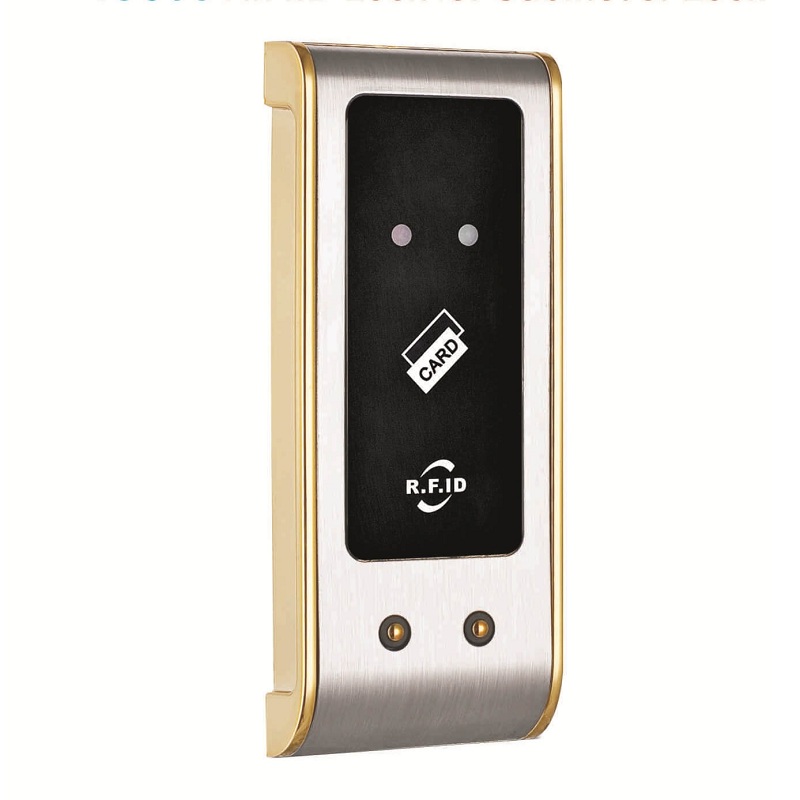

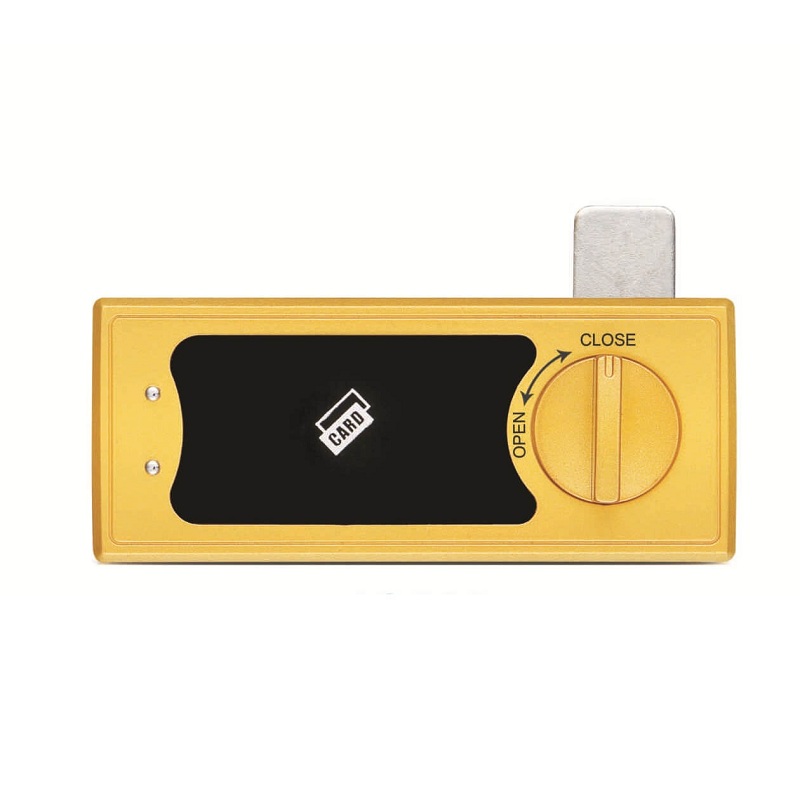

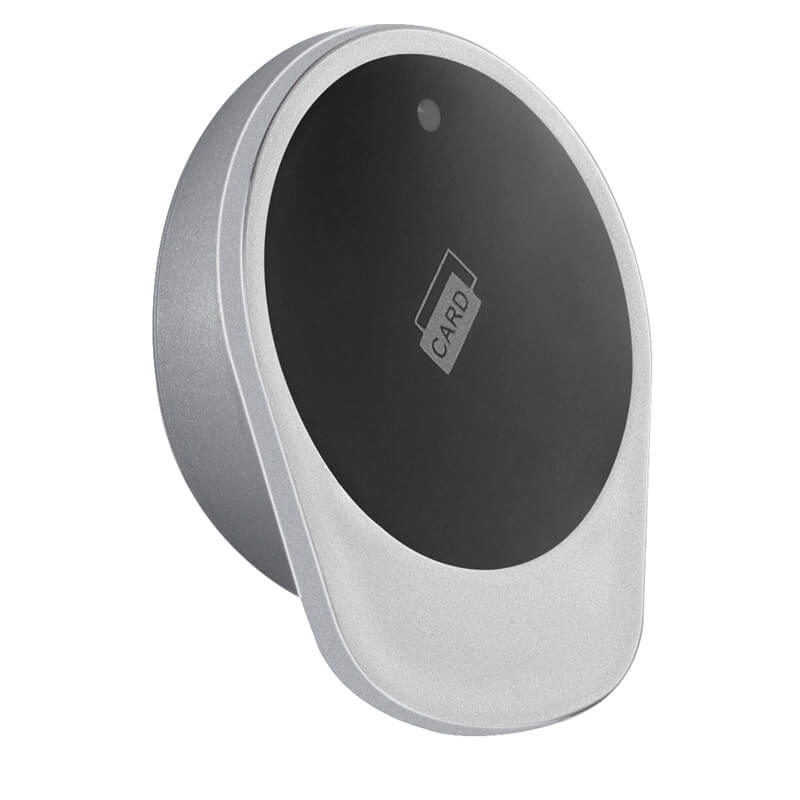

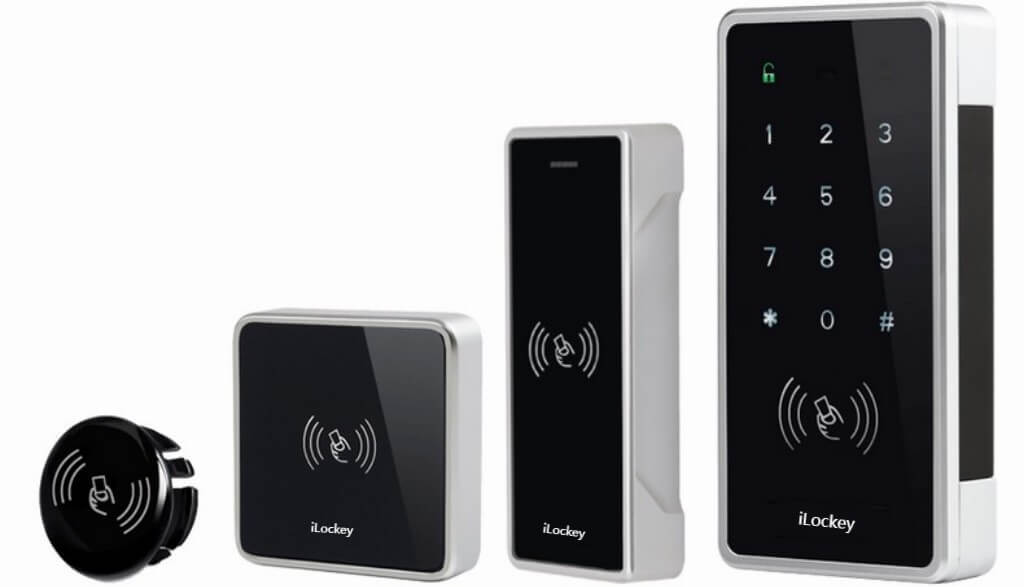

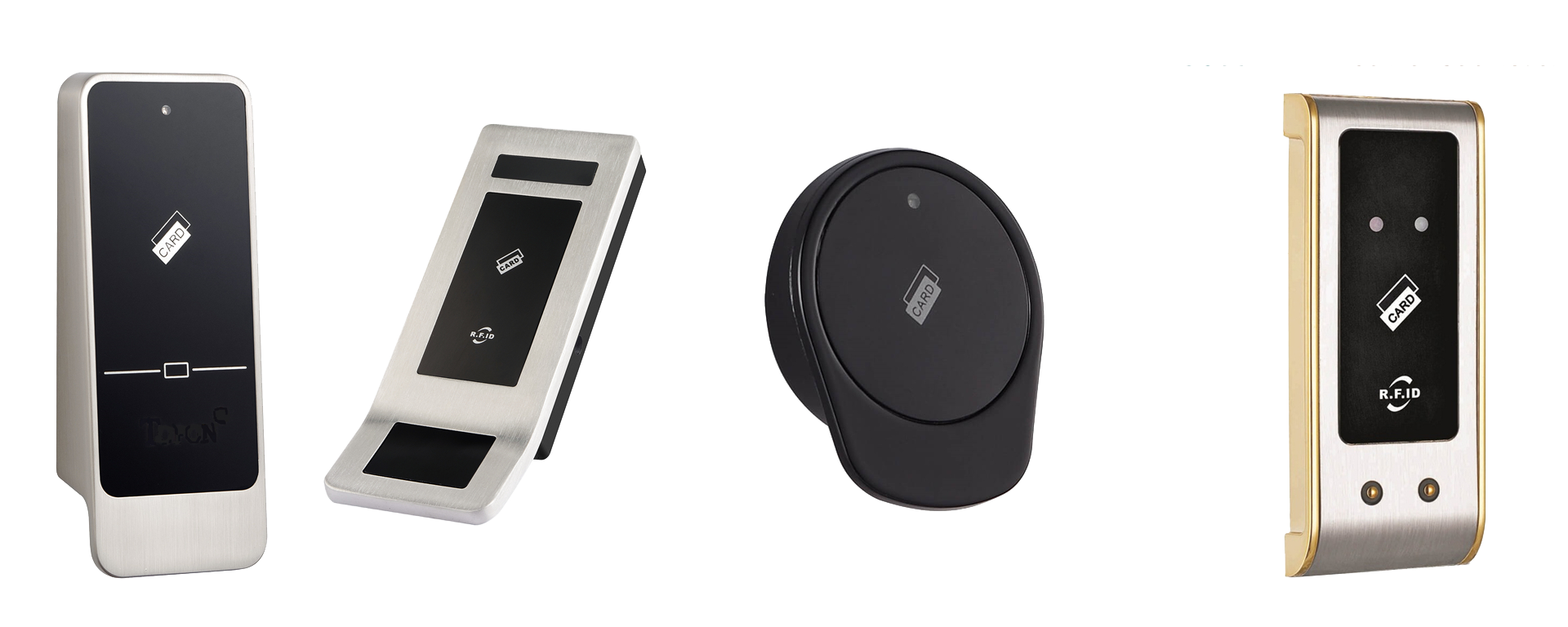

Multiple Electronic Cabinet Locks For Your Choose

See More RFID Cabinet Locks

Specification of RFID Cabinet Lock

Model No IC801/802 IC805 IC806 IC810 IC815/816 IC878
Master code/card 5 pcs 5 pcs 5 pcs 5 pcs 5 pcs 5 pcs
User code/card 5 pcs 5 pcs 5 pcs 5 pcs 5 pcs 5 pcs
Card type Mifare card Mifare card Mifare card Mifare card Mifare card Mifare card
Static Current ≤25uA ≤25uA ≤20uA ≤20uA ≤20uA ≤20uA
Dynamic Current ≤200mA ≤200mA ≤200mA ≤200mA ≤200mA ≤200mA
Working Temperature 0℃~55℃ 0℃~55℃ 15°C~55°C 15°C~55°C 15°C~55°C 15°C~55°C
Working Humidity RH20%~80% RH20%~80% RH20%~95% RH20%~95% RH20%~95% RH20%~95%
Power supplier 4.5V/3AA batteries 4.5V/3AA batteries 4.5V/3AA batteries 4.5V/3AA batteries 4.5V/3AA batteries 4.5V/3AA batteries
Low Voltage 3.6V+/-0.2V 3.6V+/-0.2V 3.7V+/-0.2V 3.7V+/-0.2V 3.7V+/-0.2V 3.7V+/-0.2V
Power backup 9V battery 9V battery 9V battery 9V battery 9V battery 9V battery
Life Time >100,000 times >100,000 times >100,000 times >100,000 times >100,000 times >100,000 times
Door Thickness ≥16mm(for wooden door)
≥0.6mm(for metal door)		 ≥11mm ≥1mm ≥13mm ≥1mm ≥11.5mm

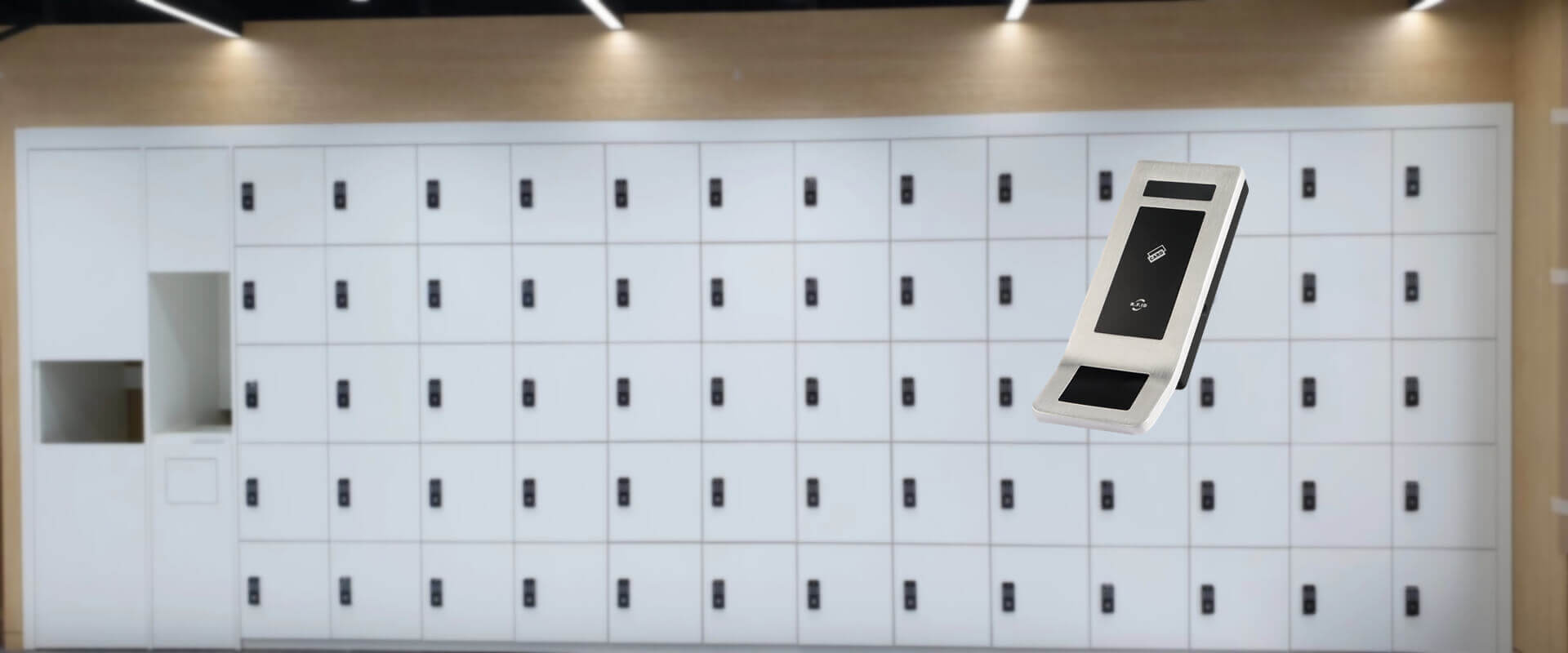

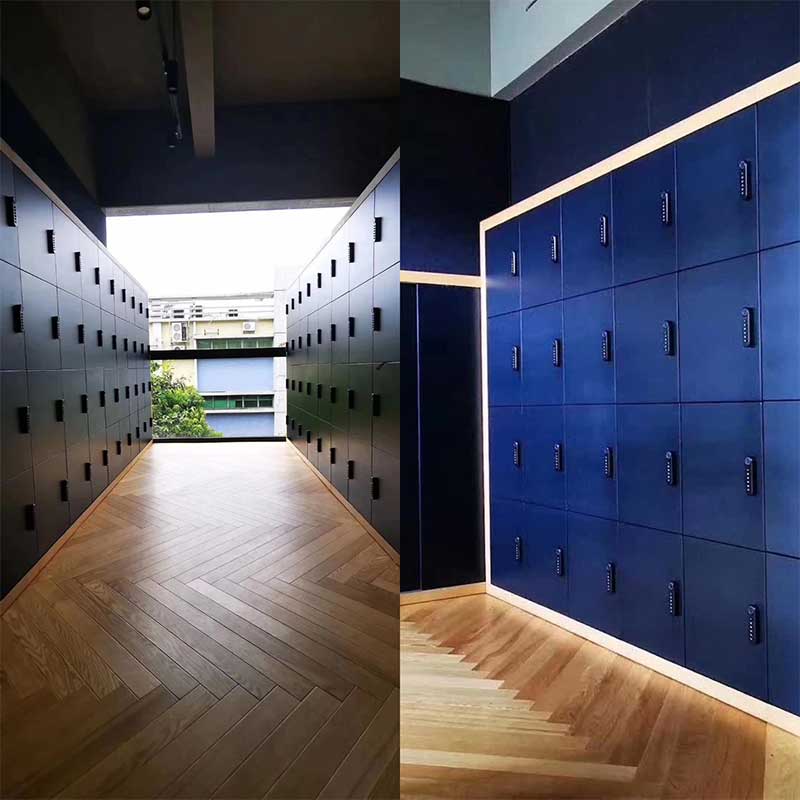

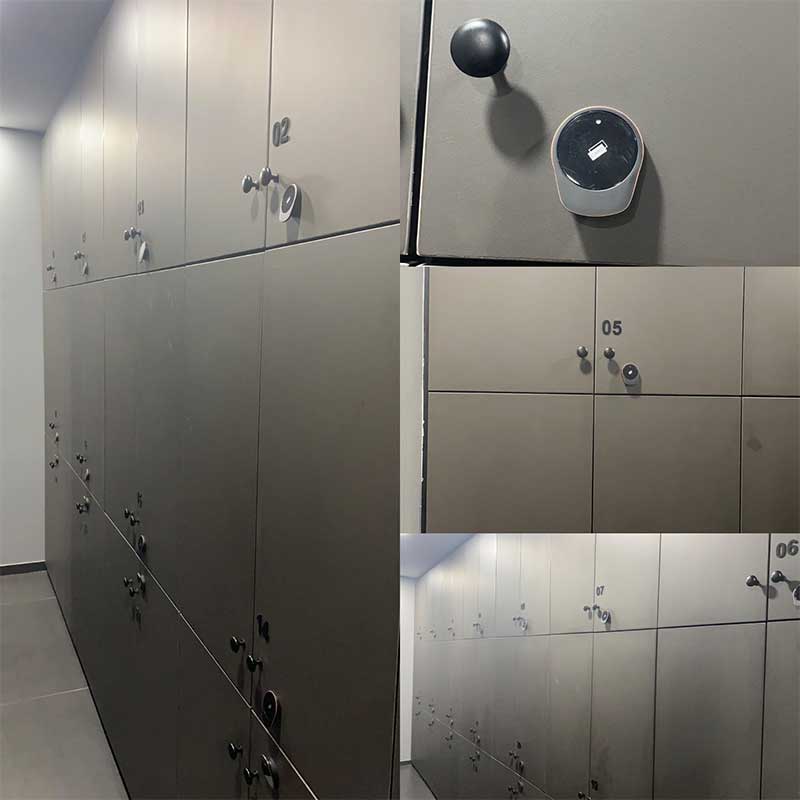

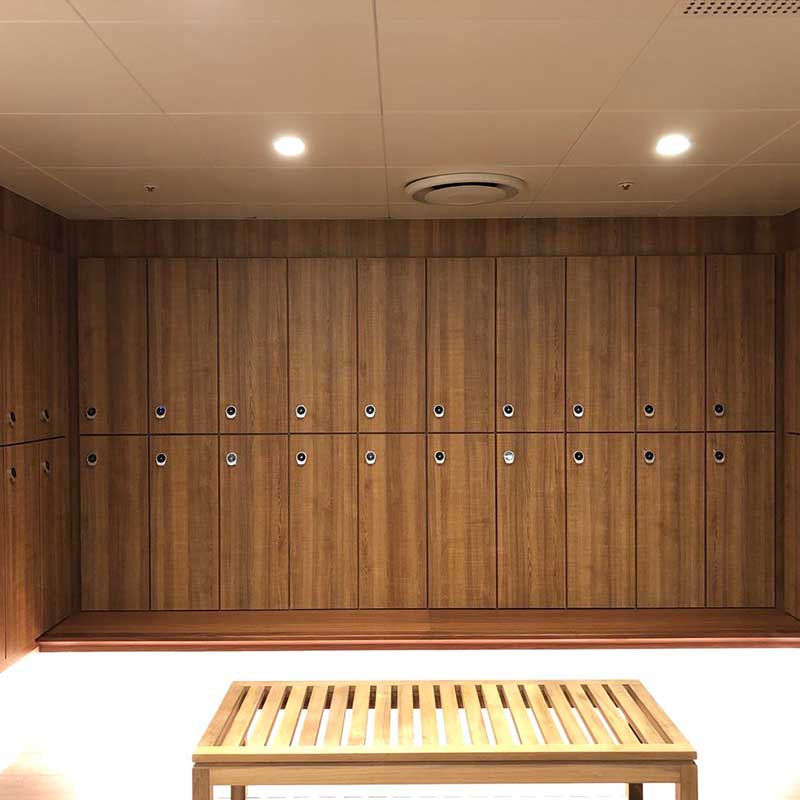

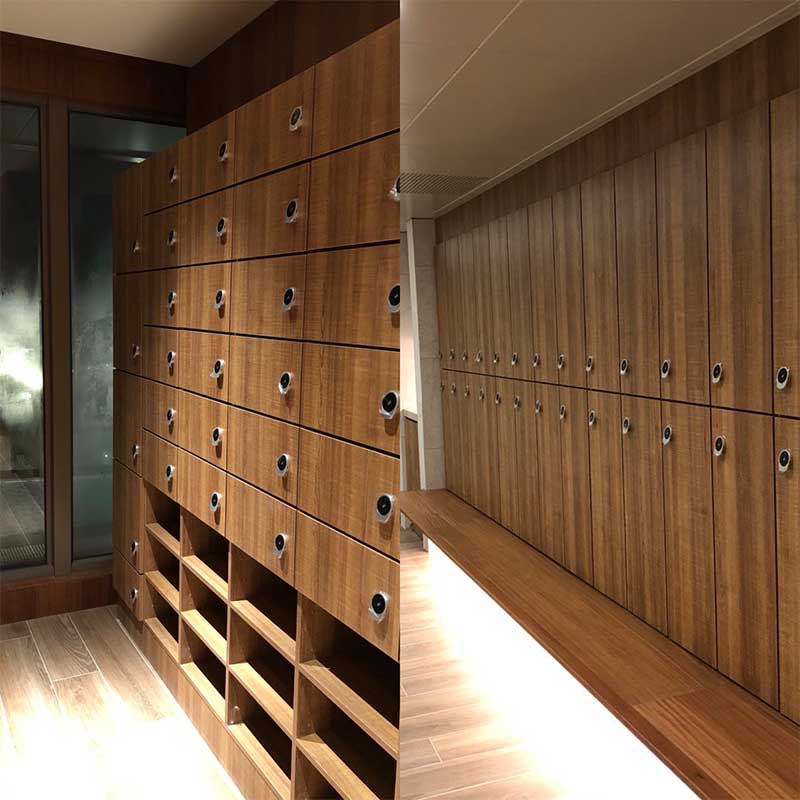

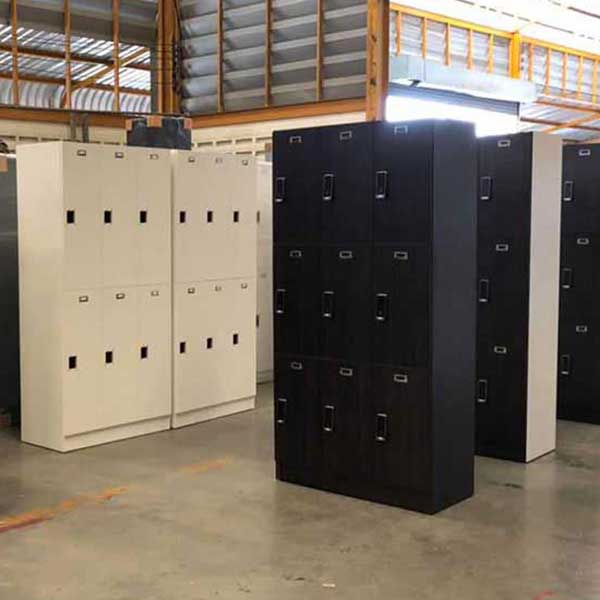

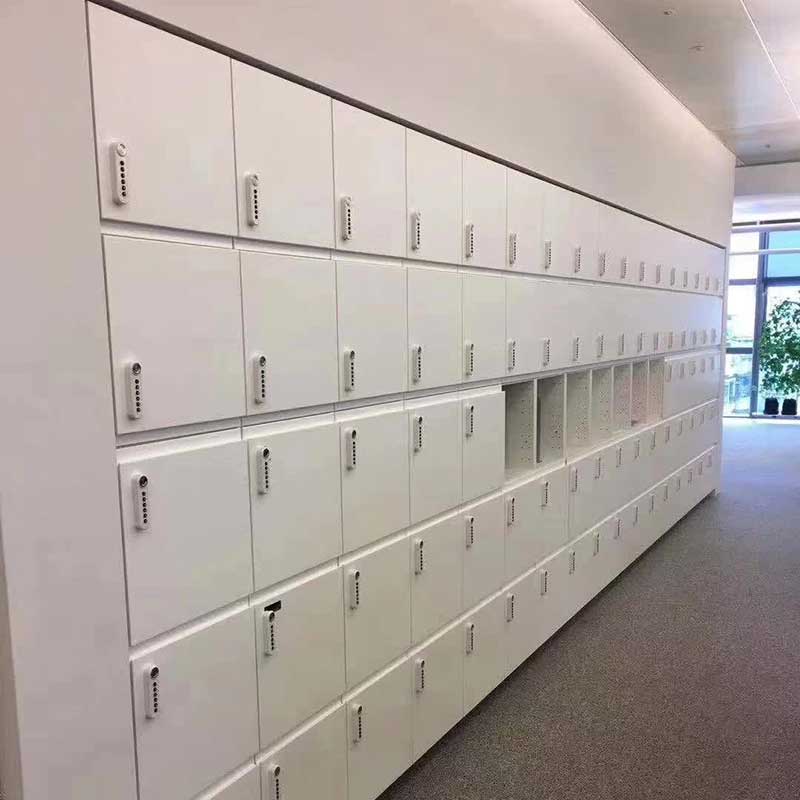

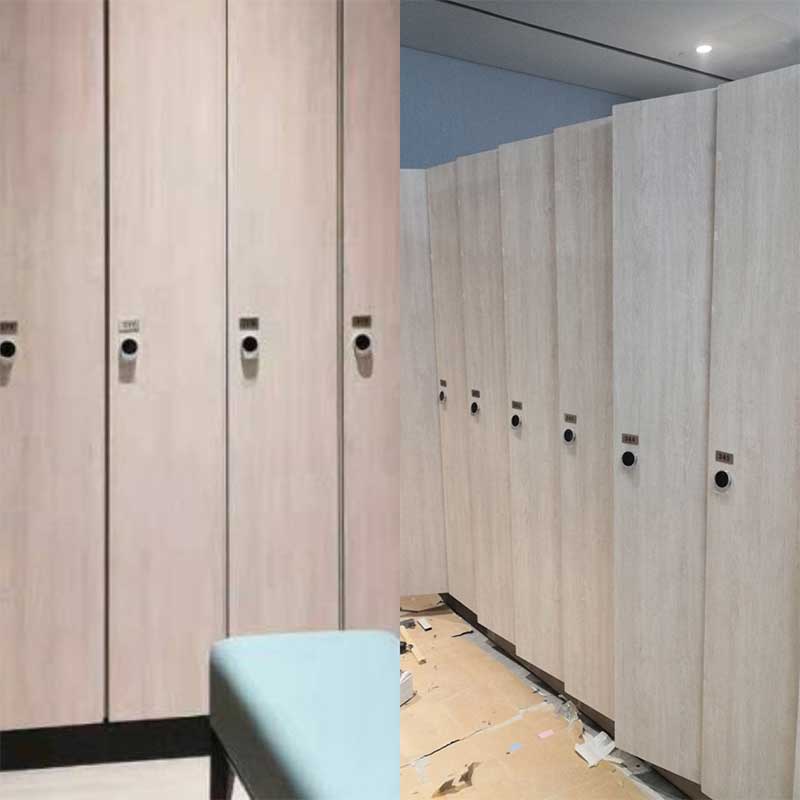

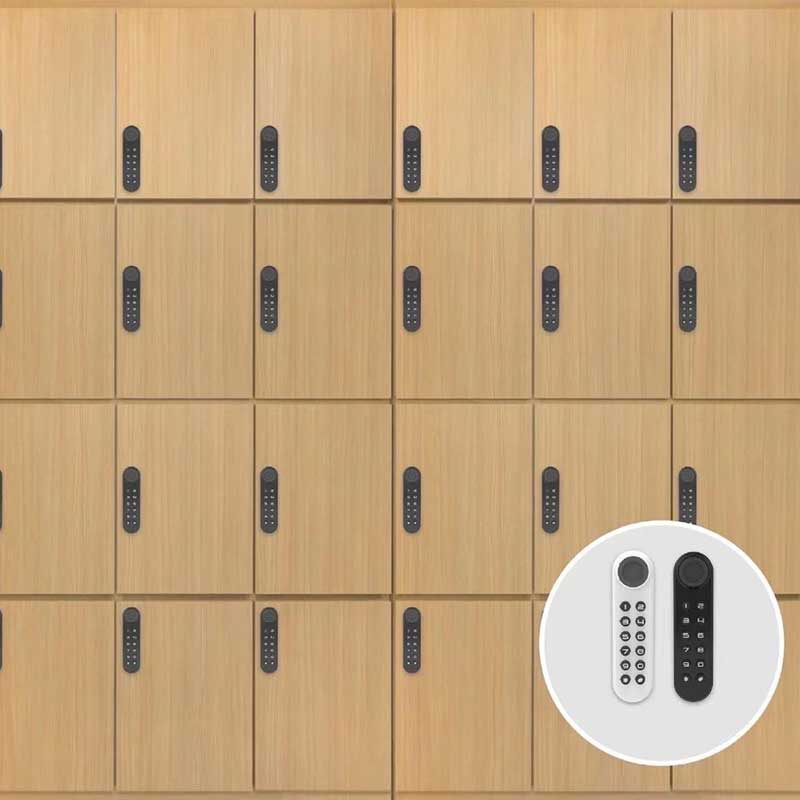

  • Electronic Cabinet Lock Application
  • Electronic Cabinet Lock Application
