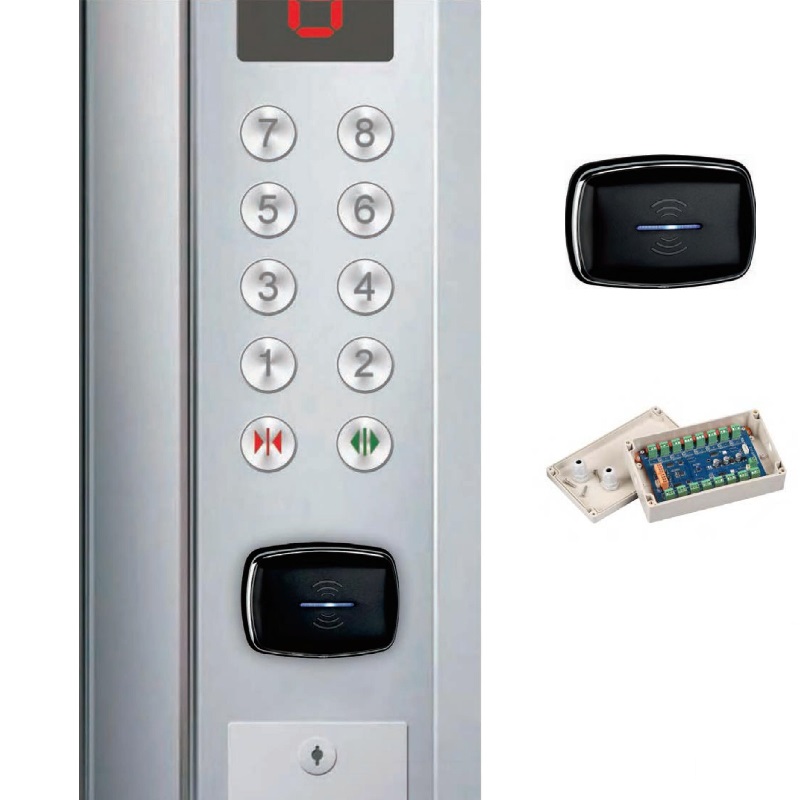

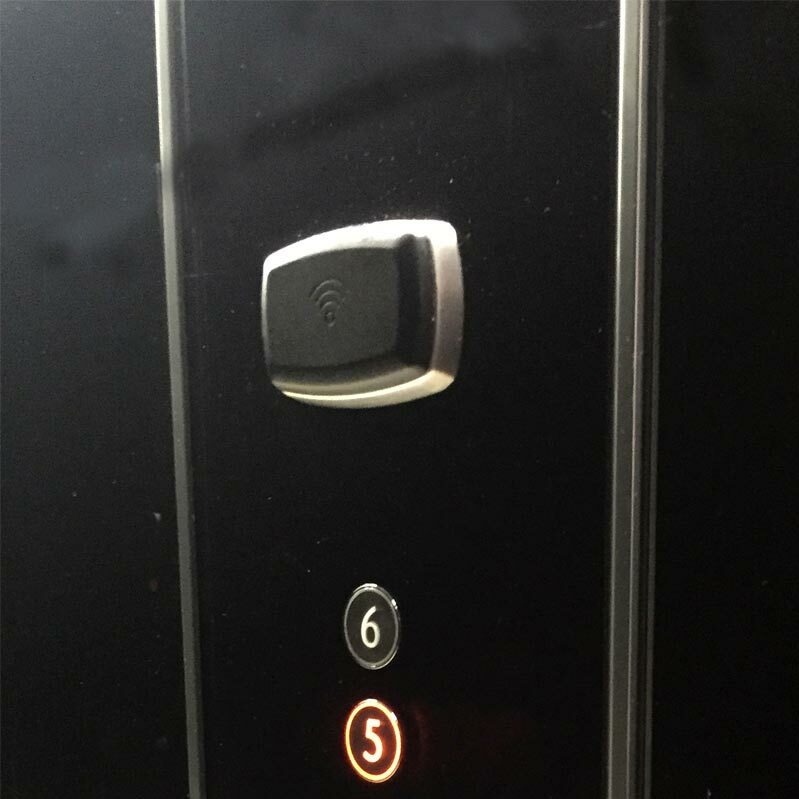

Ilockey’s RFID Elevator Controller for hotel lock system is designed to fit into elevator panels and can be operated by hotel room card. Guests need to swipe their card through the lift reader, and the lift will take the customers to the assigned floor if the guests are allowed to enter more than 1 floor, then press the specified floor button. The security level of the hotel will increase, as only guests with a valid keycard will have access to the elevators.
Description
Power supply： 12VDC
Working current： 1000mA
Card type： Mifare S50 card
Reading distance： 0~30mm
Output method: 16 groups always close contact(normal mode),
16 group always on contact(Direct mode)
Working temperature： -20~70 degree
Storage temperature： -25-70X3
Working humidity： 5%~95%
Features
Modern and minimalistic design – based on the same reader unit as Ilockey RFID hotel locks.
Possible to limit access to floors according to each guest or staff keycard’s privileges.
8 relay outputs to selectively enable the elevator call buttons is delivered as standard.
Fully compatible with the Ilockey hotel lock system.
Long reading distance (0~30mm).
Three modes: free mode, Floor mode, and Floor+time mode.
Direct function: touch the card and reach the floor directly.
Support public floor and valid time setting.
Support audit trial function: 2000 records maximum.
Fully compatible with the hotel locking software.
Stainless steel reader with rubber gasket.
Package & Shipping Term
Standard Export Quality Inner Box and Carton Packing
Package including Elevator life control reader, Elevator controller, adapter, and screw bags.
Package size:
Package weight: 5kgs/piece;
Packaging: 1pc/inner box; 60X45X30 cm
Shipping for cabinet lock:
DHL/FedEx/UPS/TNT for samples, door-to-door service.
By air or by sea for bulk goods, airport/Seaport receiving goods.
Support Customers are specifying freight forwarders or selected shipping methods!
Delivery time: 3- 15 working days. Accurate delivery based on your quantity.
