iLockey Classic Card Hotel Lock ANSI Mortise RFID Electronic Lock

iLockey Classic Card Hotel Lock ANSI Mortise RFID Electronic Lock

Experience the industry standard with the iLockey Classic Series. Designed for seamless integration in both new constructions and global hotel renovations, our six full-length models are proven in over 60 countries. We combine 20 years of smart lock innovation with a high-capacity 15,000 $m^2$ manufacturing hub, delivering 600,000+ units of reliable security every year.

  • Easy Retrofitting: The 78mm wide panel covers old drill holes from systems like Vingcard perfectly—no new drilling required.
  • SUS304 Durability: Made from premium SUS304 stainless steel; handles are tested for over 500,000 opening cycles.
  • ANSI Security Standard: Equipped with an ANSI standard five-latch mortise to prevent picking and ensure maximum guest safety.
  • Stable Daily Operation: High-quality motors and SMT production guarantee reliable performance for years.
SKU: C300/E200/E300/E301/M800-MF Category:

Description

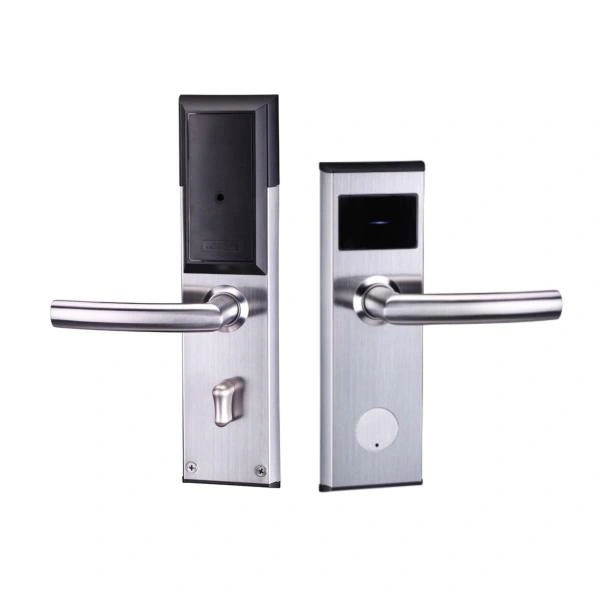

Classic Hotel Lock 03

iLockey C300 Hotel Door Lock (PVD Luxury Series)

Specifically optimized for high-end aesthetics with PVD (Physical Vapor Deposition) coating. It offers superior color retention and wear resistance, making it perfect for luxury hotel environments.

  • Model: C300
  • Material: High-quality 304# Stainless Steel
  • Panel Size: * Front Panel: 78mm x 243mm x 17.5mm
  • Back Panel: 78mm x 306mm x 17.5mm
  • Available Finishes: Satin Stainless Steel (SS) / PVD Gold (GG)
  • Unlock Ways: Mifare S50 IC Card (13.56MHz) + Mechanical Override Key
  • Power Supply: DC 6V (4 x AA Alkaline Batteries)
  • Mortise: 70# ANSI Standard Mortise (5-latch, anti-panic function)
  • Door Thickness: 38mm – 60mm (Customizable)

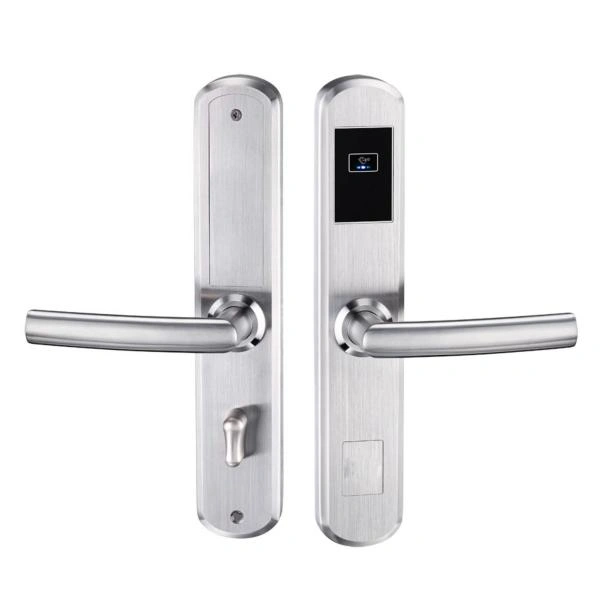

Classic Hotel Lock 04

iLockey E200 Hotel Door Lock (Ultra-Slim Modern Series)

Featuring an ultra-slim 55mm width design, the E200 is engineered for modern style and narrow-frame doors. It provides a sleek, contemporary look without compromising the strength of 304 stainless steel.

  • Model: E200
  • Material: High-quality 304# Stainless Steel (Panel & Handle)
  • Panel Size: 55mm x 300mm x 21.5mm
  • Available Finishes: Satin Stainless Steel (SS) / Black (BN) / PVD Gold (GG)
  • Unlock Ways: Mifare S50 IC Card (13.56MHz) + Mechanical Override Key
  • Power Supply: DC 6V (4 x AA Alkaline Batteries)
  • Mortise: 70# ANSI Standard Mortise (5-latch, anti-panic function)
  • Door Thickness: 30mm – 65mm (Ideal for various door types)

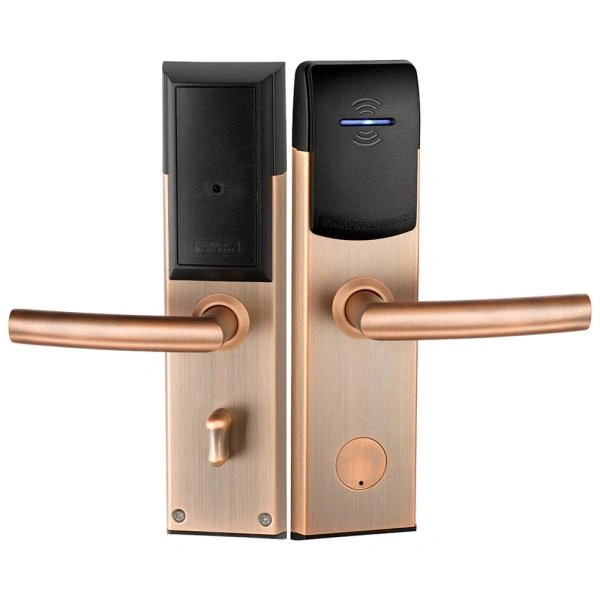

Classic Hotel Lock 01

E300 Hotel Door Lock (Vingcard Replacement Series)

Specifically designed as a direct replacement and upgrade for Vingcard locks. It allows hotels to upgrade to modern RFID technology without replacing the existing door prep in many cases.

  • Model: E300
  • Material: High-quality 304# Stainless Steel (Panel & Handle)
  • Panel Size: * Front Panel: 78mm x 288mm x 17.5mm
  • Back Panel: 78mm x 306mm x 17.5mm
  • Available Finishes: Satin Stainless Steel (SS) / Black (BN) / PVD Gold (GG)
  • Unlock Ways: Mifare S50 IC Card (13.56MHz) + Mechanical Override Key
  • Power Supply: DC 6V (4 x AA Alkaline Batteries)
  • Mortise: 70# ANSI Standard Mortise (5-latch, anti-panic function)
  • Door Thickness: 38mm – 60mm (Customizable for other thicknesses)

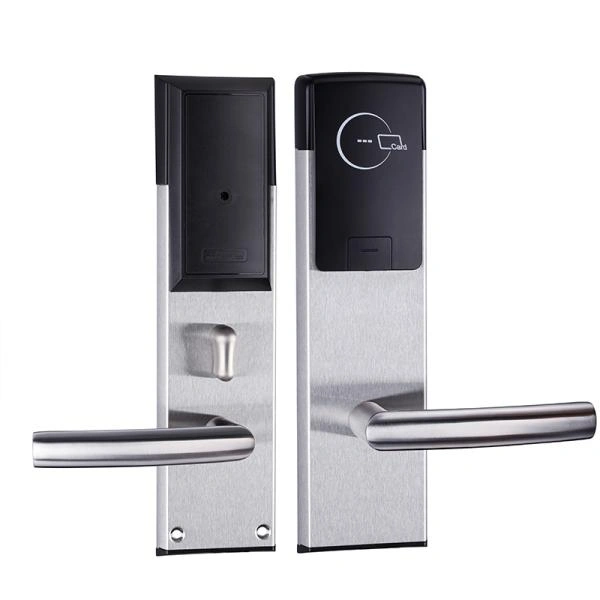

Classic Hotel Lock 02

E301 Hotel Door Lock (Classic Retrofit Series)

A compact and ergonomic version of the classic hotel lock. Featuring a smaller front panel, it is ideal for hotels seeking a minimalist 304 stainless steel aesthetic while maintaining high security.

  • Model: E301
  • Material: High-quality 304# Stainless Steel (Panel & Handle)
  • Panel Size: * Front Panel: 78mm x 243mm x 17.5mm
  • Back Panel: 78mm x 306mm x 17.5mm
  • Available Finishes: Satin Stainless Steel (SS) / Black (BN)
  • Unlock Ways: Mifare S50 IC Card (13.56MHz) + Mechanical Override Key
  • Power Supply: DC 6V (4 x AA Alkaline Batteries)
  • Mortise: 70# ANSI Standard Mortise (5-latch, anti-panic function)
  • Door Thickness: 38mm – 60mm (Customizable)

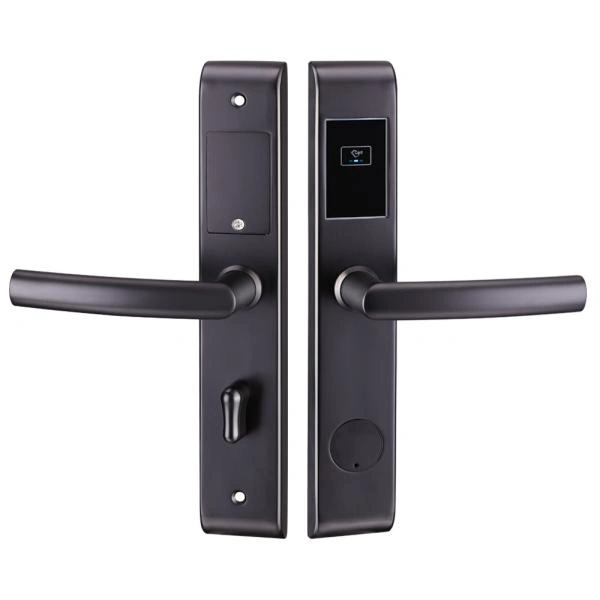

Classic Hotel Lock 05

M800 Hotel Door Lock (European Standard Slim Series)

Specifically designed to comply with European Mortise standards. Its slim 50mm profile and specialized internal structure make it the premier choice for international projects requiring Euro-spec hardware.

  • Model: M800
  • Material: 304# Stainless Steel Reader, Handle, and Rose
  • Panel Size: 50mm x 290mm x 18.5mm
  • Available Finishes: Satin Stainless Steel (SS) / Black (BN)
  • Unlock Ways: Mifare S50 IC Card (13.56MHz) + Mechanical Override Key
  • Power Supply: DC 6V (4 x AAA Alkaline Batteries)
  • Mortise: European Standard Mortise (Available for 35/85, 45/85, 60/85 sizes)
  • Door Thickness: 30mm – 65mm
