iLockey Tuya PVC/Aluminum Smart door Lock Series

iLockey’s Tuya WiFi Narrow Series delivers a hub-free, slim-profile security solution specifically engineered for PVC and thermal-break aluminum doors where standard locks fail to fit.With 20+ years of manufacturing expertise and a 15,000㎡ facility, iLockey provides IP65/IP66-rated, CE/FCC-certified hardware that ensures reliable, weather-resistant performance for high-volume global projects.

Ultra-Slim Retrofit Design: Panel widths as narrow as 35–38mm, enabling direct replacement of existing narrow-frame mechanical locks with no structural modification.
All-Weather Protection: IP65 / IP66-rated sealing and corrosion-resistant finishes ensure reliable operation in outdoor and coastal environments.
Flexible Mortise Compatibility: Supports both Euro mortise (swing doors) and hook mortise (sliding doors) for full door-type versatility.
No-Gateway Connectivity: Built-in WiFi connects directly to the Tuya Smart App for remote access and real-time alerts.

SKU: A210/A211/A213/ F2/F5/A216-TY-WiFi Category: Tuya Smart Lock

Description

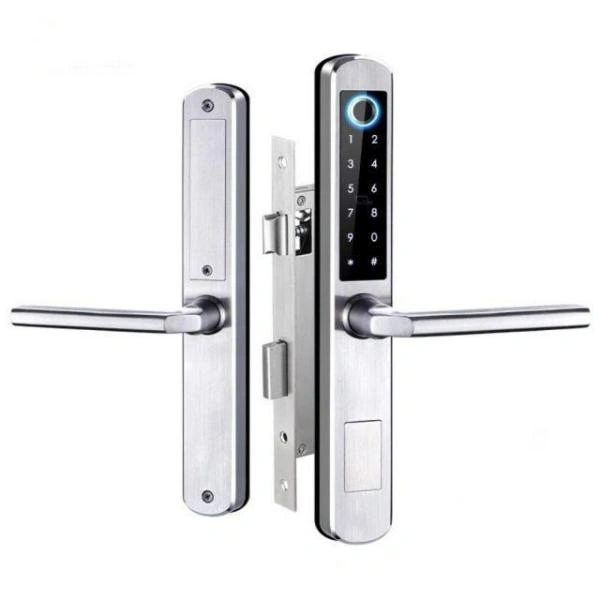

Model: A210 (Tuya WiFi)

Slim 38mm panel design, perfect for narrow stile aluminum or PVC doors.

Model: A210
Dimensions: 300mm x 38mm x 25mm
Communication: WiFi 2.4GHz (Direct Connect)
Unlock Methods: Tuya App, Fingerprint, Passcode, IC Card, Mechanical Key
Waterproof Rating: IP65 Certified (Suitable for outdoor/exterior doors)
Mortise Options: Supports Euro Mortise (2885/3585) and Hook Mortise for sliding doors
Material: SUS304 material
Security: Anti-Tesla coil (EMS) protection

Model: A211 (Tuya WiFi)

Modern minimalist slim handle lock; ideal for balcony and garden doors.

Model: A211
Dimensions: 310mm x 40mm x 20mm
Communication: WiFi 2.4GHz
Unlock Methods: Tuya App, Fingerprint, Passcode, IC Card, Mechanical Key
Waterproof Rating: IP66 Weatherproof
Mortise Options: Euro Slim Mortise / Hook Mortise available
Handle: Reversible for Left/Right handling
Emergency Power: Micro-USB / Type-C backup port

Model: A213 (Tuya WiFi)

Reinforced narrow-body lock with enhanced durability for commercial aluminum storefronts.

Model: A213
Dimensions: 320mm x 38mm x 22mm
Communication: WiFi 2.4GHz
Unlock Methods: Tuya App, Fingerprint, Passcode, IC Card, Mechanical Key
Waterproof Rating: IP65 Rated
Material: Solid Aluminum alloy
Working Temp: -25°C to +70°C
Mortise Options: Supports both Euro Mortise and Hook Mortise (for sliding doors).

Model: F2 (Tuya WiFi)

Compact narrow lock with high-speed semiconductor fingerprint sensor.

Model: F2
Dimensions: 280mm x 38mm x 25mm
Communication: WiFi 2.4GHz
Unlock Methods: Tuya App, Fingerprint, Passcode, IC Card, Mechanical Key
Waterproof Rating: IP64 Rated
Mortise Type: Multi-point lock compatibility supported
Battery Life: Up to 10 months

Model: F5 (Tuya WiFi)

Premium slim lock with full-screen tempered glass panel for scratch resistance.

Model: F5
Dimensions: 300mm x 40mm x 22mm
Communication: WiFi 2.4GHz
Unlock Methods: Tuya App, Fingerprint, Passcode, IC Card, Mechanical Key
Waterproof Rating: IP65 Rated
Static Current: < 50μA
Alarm: Low voltage & Tamper alarm notifications

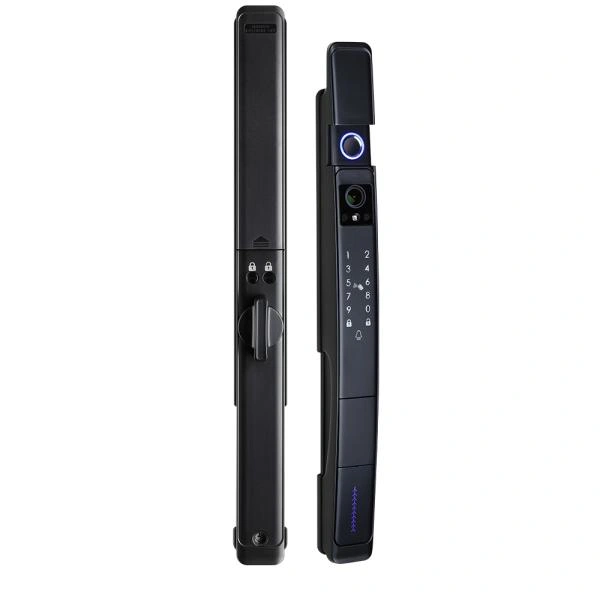

Model: A216 (Tuya WiFi – 3D Face Recognition Edition)

The industry’s slimmest 3D Face Recognition lock; designed for extremely thin aluminum/broken bridge profiles without compromising high-end security.

Model: A216
Dimensions: 280mm x 35mm x 20mm
Communication: WiFi 2.4GHz (Direct Cloud Integration)
Unlock Methods:3D Structured Light Face Recognition, Tuya App, Fingerprint, Passcode, IC Card, Mechanical Key
Technical Specifications:
3D Face Tech: Identifies 30,000+ points on the face; prevents photos, videos, or 3D masks from bypassing security.
Waterproof Rating: IP65 Certified (Fully sealed for outdoor use)
Door Prep: Ultra-narrow panel fits door frames as thin as 40mm.
Power Supply: High-capacity Rechargeable Lithium Battery (optimized for Face ID).
Mortise Options: Supports both Euro Mortise and Hook Mortise (for sliding doors).
