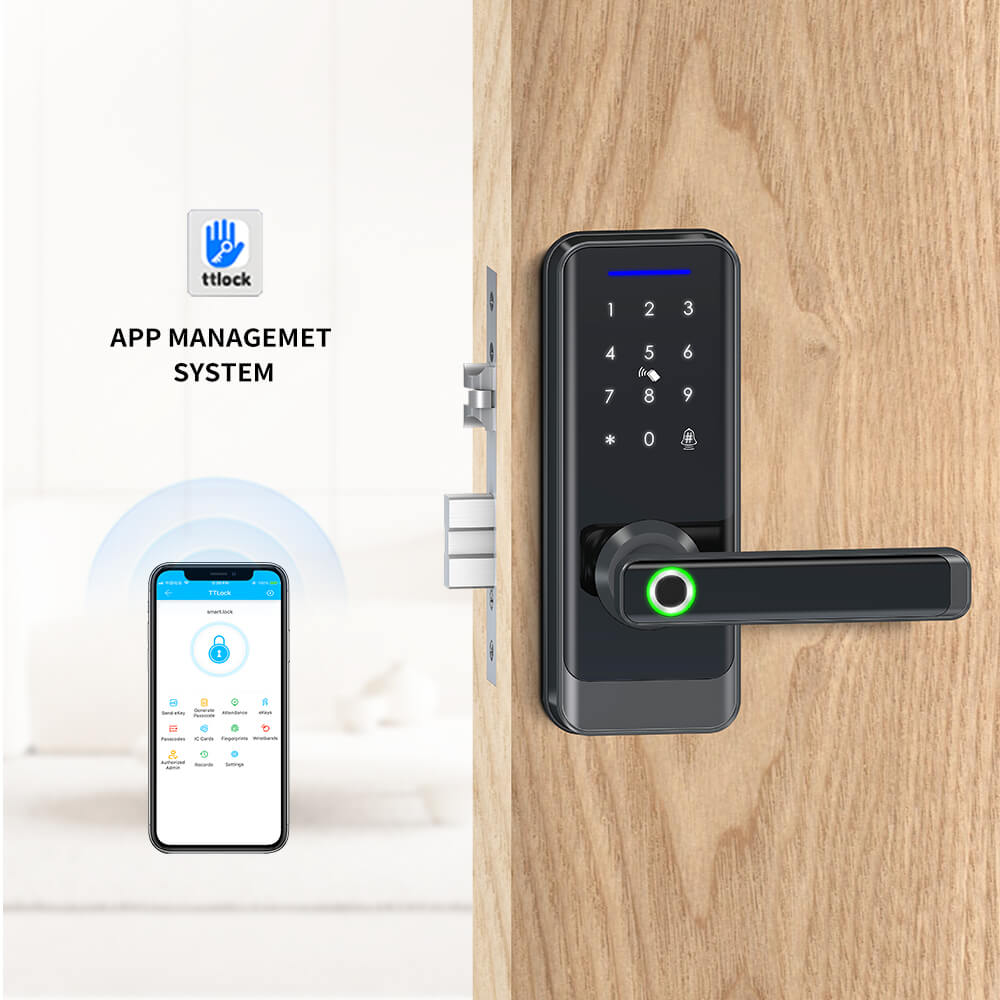

iLockey Smart door lock, supports TTLock / TTHotel App unlocking, with a 60/70 adjustable latch with no extra hole drilling request, you can replace your mechanism lock with smart door locks with a strong and secure aluminum alloy lock panel, Anti-corrosion, and study you can protect your family members so easy by Smartphone.
fingerprint code card icon_00
Material: Aluminum alloy
Available finish treatment: Satin Nickel/ Black Nickel
Features: with doorbell function
Support: OS iOS 7.0 or above, Andriod 4.4 or above
Lifetime: 200,000 times

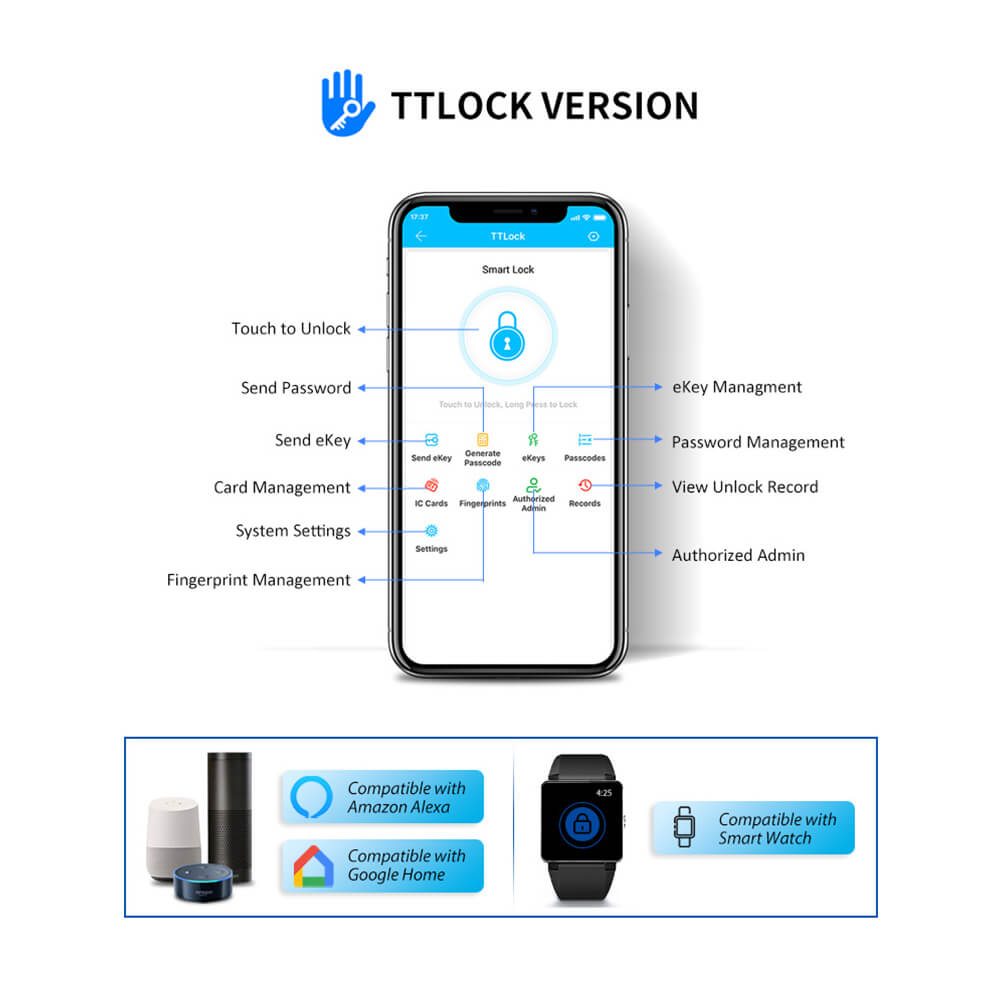

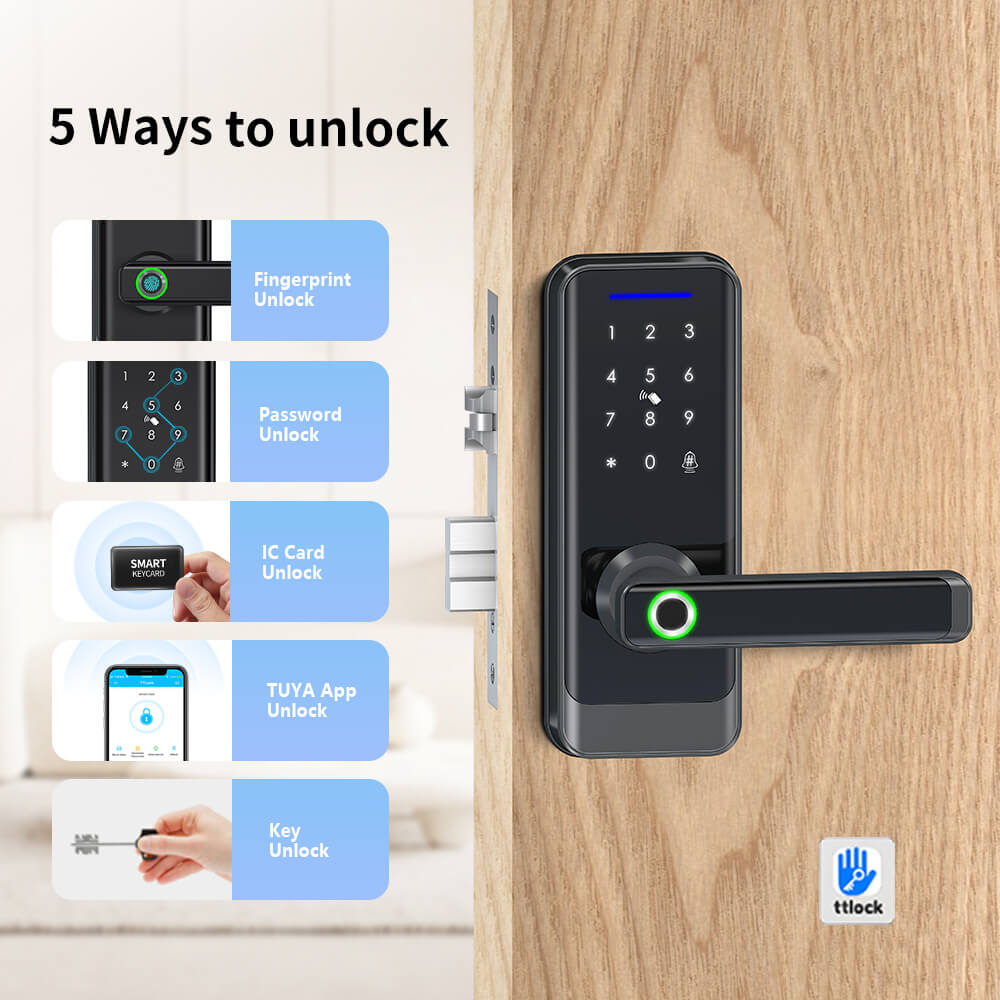

Unlock way: APP/ Fingerprint/IC card/ passcode
/mechanical key/Ekey/bracelet
Power supply: 4 pcs of AA alkaline battery
Battery Life: 7000 times normal unlock(10-12 months)
Power Supply: 4pcs AA alkaline batteries
Static Current: ≦50uA
Dynamic Current: <200mA
Unlock time: 1~1.5 seconds
Working Temperature: -20~50 degree
Working Humidity: 10%~95%
Factory Passcode: 123456, after setting, the factory passcode will be invalid

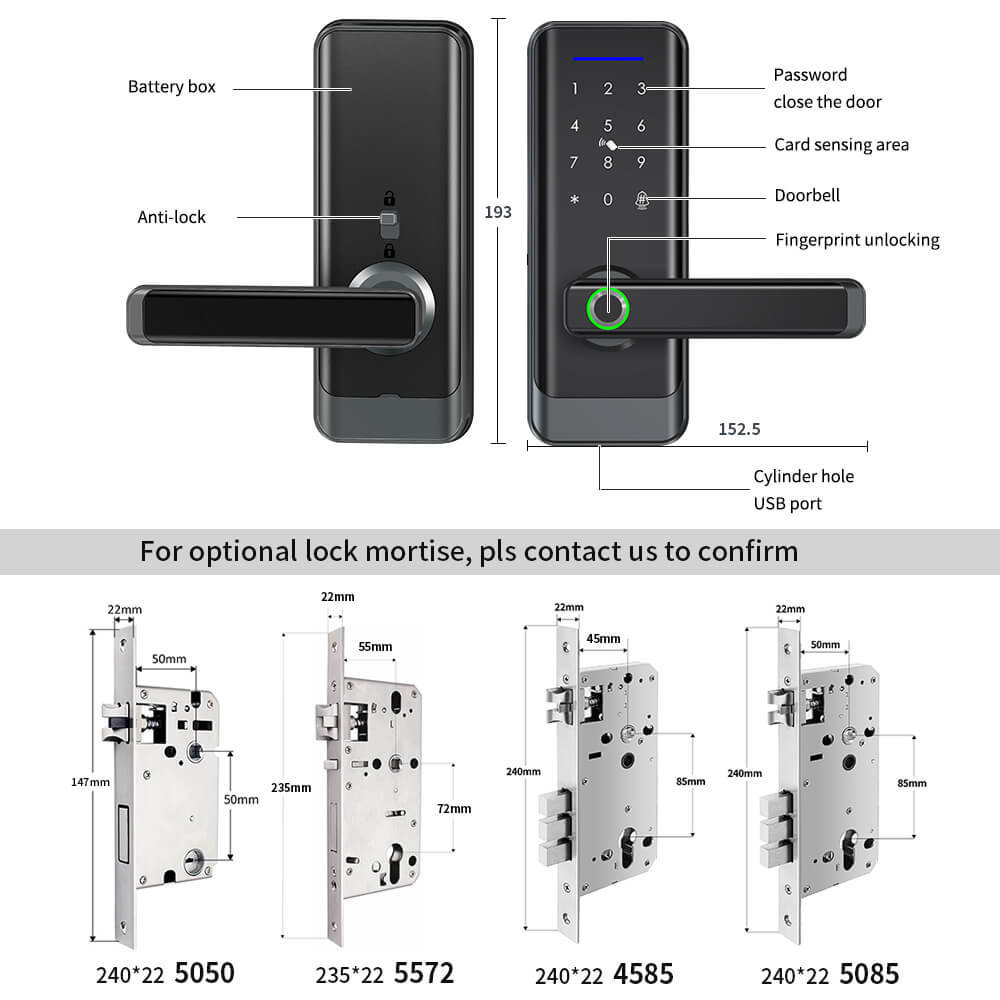

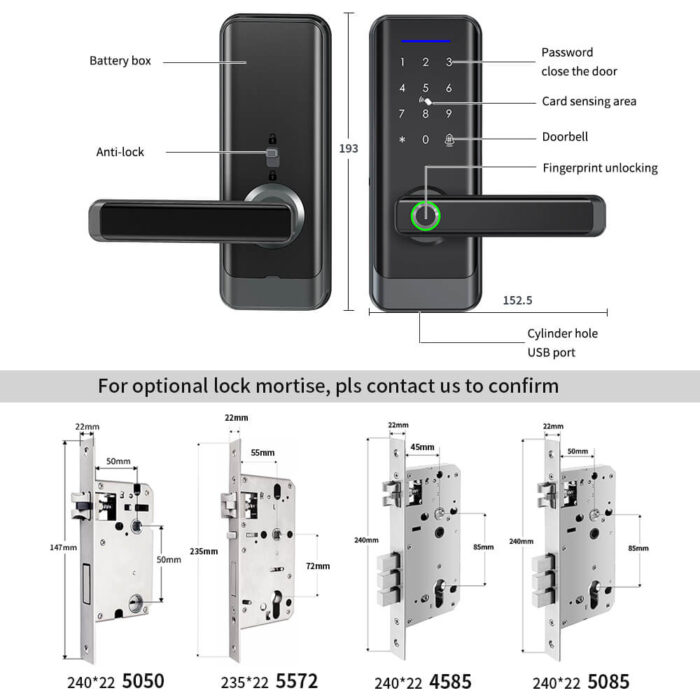

Mortise: 5050/60/70 adjustable latch and single latch
Available door thickness: 35-55mm
User Capacity: Fingerprint+card+password 300 groups
Model |
A233 |
Material |
Curved tempered glass + aluminum alloy |
Color |
Black / Silver |
Unlock Way |
App / Fingerprint / Password / Card / Mechanical Key |
Cylinder |
C Level |
Power Supply |
4pcs AA Batteries |
Available Door |
Wood door / Security door / Bronze door / Iron door |
Available Thickness |
30-50mm |
Unlock Direction |
Universal for left/right |

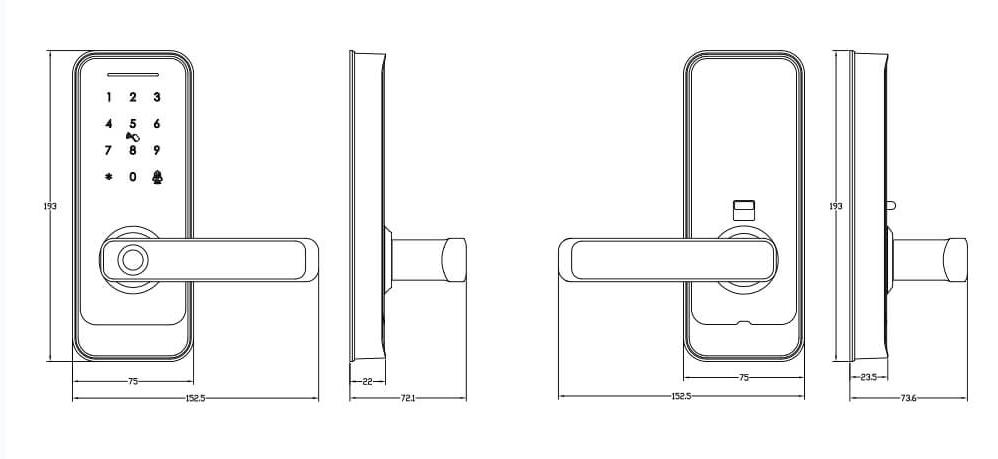

Product Dimension |
Front: 193*75mm |
Standard Export Quality Inner Box and Carton Packing
Package including Front panel, rear panel, cylinder, and screw bag
Inner Single box sizes 320*220*120 mm
Outer Carton box 650*430*260mm
Single lock gross weight 2.0kg
Packing quantity of each carton 9pcs
Shipping for Tuya smart door lock:
DHL/FedEx/UPS/TNT for samples, door-to-door service.
By air or by sea for bulk goods, airport/Seaport receiving goods.
Support Customers are specifying freight forwarders or selected shipping methods!
Delivery time: 3- 15 working days. Accurate delivery based on your quantity.
