iLockey TThotel Lock System Accessories

A unified cloud ecosystem that integrates room access, elevator control, and energy management into a single, centralized platform for seamless property oversight.Global compliance (CE, FCC, RoHS) and full-stack scalability eliminate operational silos, reducing labor costs and maximizing long-term asset ROI through intelligent automation.

G2 Wi-Fi Gateway: The bridge to your locks. It lets you unlock doors, change passcodes, and check records remotely from anywhere in the world.
E4 Card Encoder: A fast, plug-and-play USB device for the front desk. Issue encrypted guest cards in seconds with a simple click.

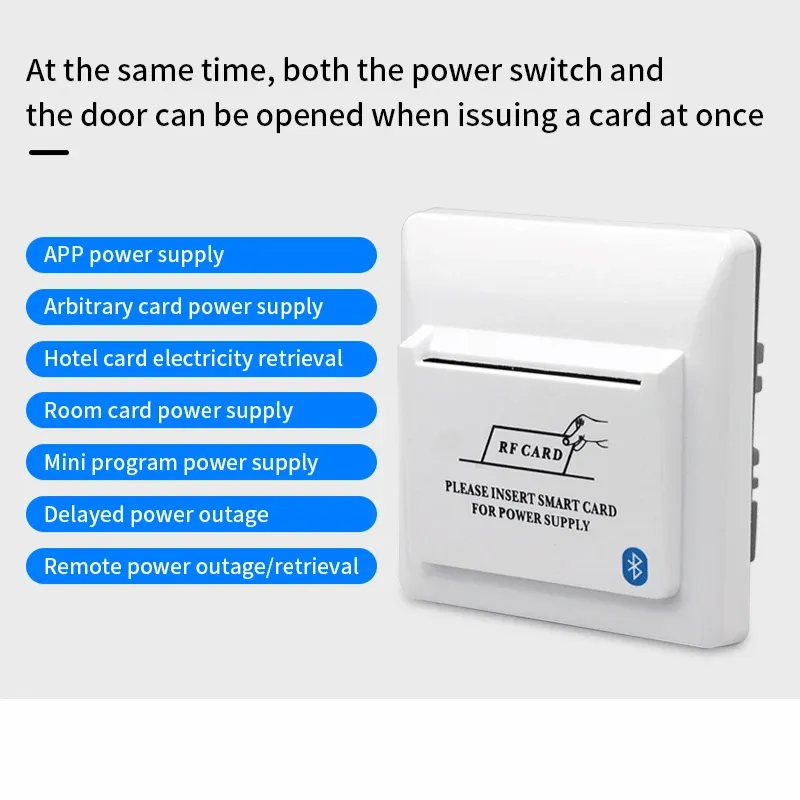

ES2 Smart Energy Saver: Save on electricity bills. It only turns on lights for authorized guest cards—business cards or paper won’t work.
SN-261 Lift Controller: Safe and secure. It limits elevator access to guest floors only, ensuring a secure “One-Card” experience for the whole building.
Encrypted IC Cards: High-security 13.56MHz cards. They use special encryption so they cannot be copied or cloned by hackers.

Description

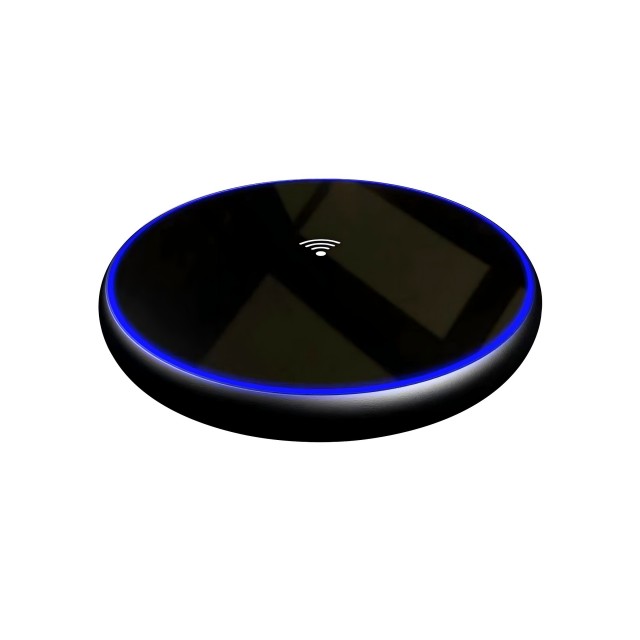

iLockey E4 TThotel Card Encoder

Professional desktop device for issuing guest and staff IC cards via TThotel Windows Software.

Model: E4
Communication Mode: USB connection to PC
Card Type: Mifare 1 (S50) 13.56MHz
Power Interface: Type-C USB (DC 5V / 500mA)
Surface treatment: Black oxidation
Status Feedback: Purpel Light (Encoder Mode), Blue Light (Reader Mode)

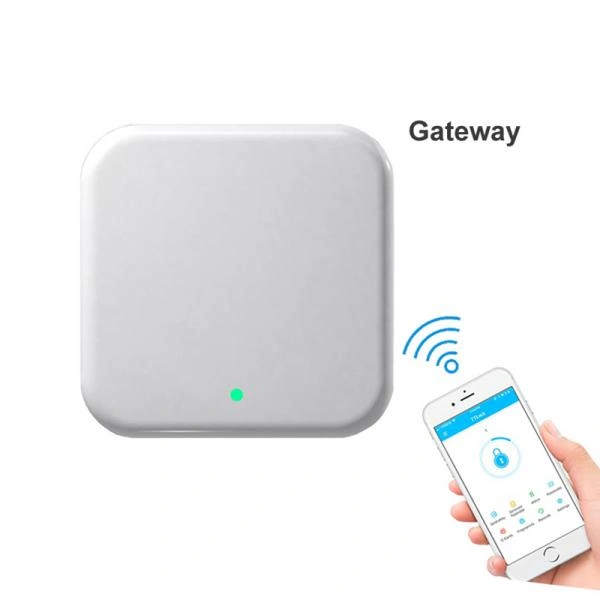

iLockey G2 TThotel Smart Gateway

Enables remote management for TThotel locks, including remote unlocking and real-time log tracking.

Model: G2
Network: WiFi 2.4G (IEEE 802.11 b/g/n)
Power Interface: Type-C USB
Power Input: DC 5V / 500mA
Dimensions: 70 x 70 x 26 mm
Status Indicators: Red/Blue LED (Pairing mode), Blue (Working), Red (Network failure)
Electronic & Intelligence Safety: CE, RoHS, and FCC Certified

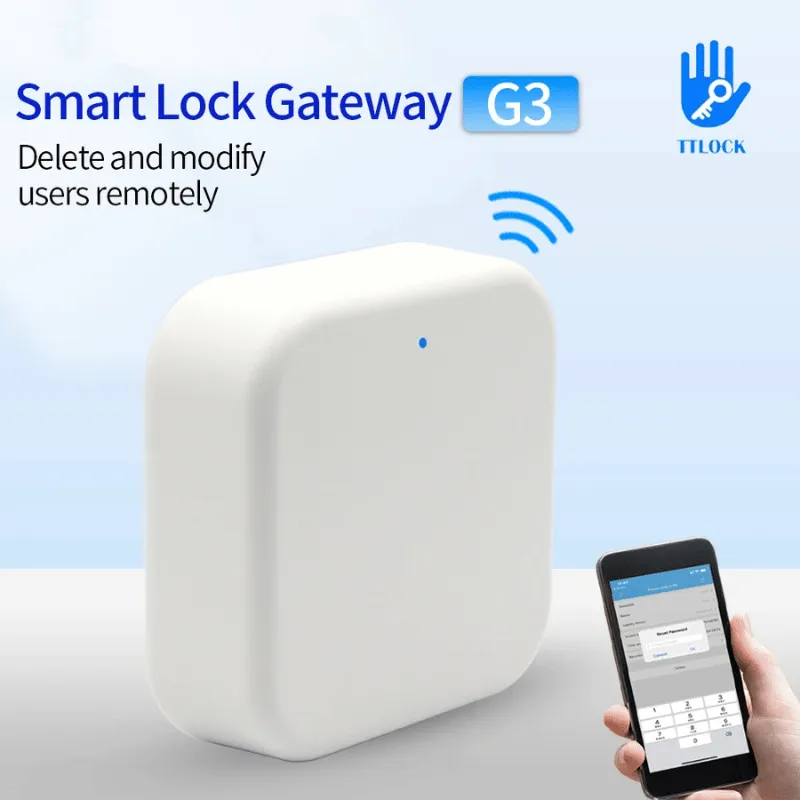

iLockey G3 TThotel Smart Wired Gateway

Provides a stable wired network connection via Ethernet to bridge TThotel locks to the cloud.

Model: G3
Network Interface: RJ45
Network Rate: 10M
IEEE Standard: 802.3
Power Interface: Type-C USB
Power Input: DC 5V / 500mA
Dimensions: 70 x 70 x 26 mm
Status Indicators: Red/Blue LED (Pairing mode), Blue (Working), Red (Network failure)
Electronic & Intelligence Safety: CE, RoHS, and FCC Certified

iLockey G3P TThotel Smart PoE Gateway

Professional wired gateway supporting PoE (Power over Ethernet) for a cleaner installation and more stable data transmission.

Model: G3P
Function:
Network Interface: RJ45
Network Rate: 10M / 100M
IEEE Standard: 802.3
Power Interface: Type-C USB / PoE (Can be powered directly via network cable)
Power Input: 500mA
Dimensions: 70 x 70 x 26 mm
Status Indicators: Red/Blue LED (Pairing mode), Blue (Working), Red (Network failure)
Electronic & Intelligence Safety: CE, RoHS, and FCC Certified

iLockey G4 TThotel 4G Gateway

Ideal for remote management in locations without Wi-Fi or Ethernet.

Model: G4
Network: 4G (LTE)
Power Input: DC 5V / 500mA
Dimensions: 110 x 110 x 35 mm
Electronic & Intelligence Safety: CE, RoHS, and FCC Certified

iLockey G5 TThotel Dual-band Gateway

High-speed bridge connecting locks to the cloud via modern Wi-Fi bands.

Model: G5
Network: Wi-Fi 2.4G / 5G
IEEE Standard: 802.11 b/g/n/ac/ax
Power Interface: Type-C USB
Power Input: DC 5V / 500mA
Dimensions: 75 x 75 x 24 mm
Electronic & Intelligence Safety: CE, RoHS, and FCC Certified

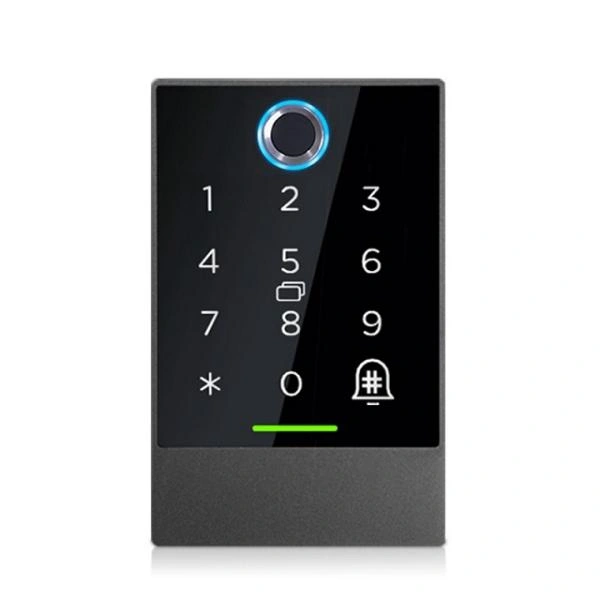

iLockey K3W TThotel Smart Access Control

Secure entry control for main gates and public areas via App, card, or passcode.

Model: K3W
Unlocking Methods: TThotel App, IC Card, Passcode
Network: Wi-Fi 2.4G (802.11 b/g/n/ax)
Power Supply: DC 12-24V
Waterproof Level: IP67 Certified
Capacity: 2,000 Cards / 500 Passcodes
Material: High-quality ABS/Acrylic
Dimensions: 80 x 126 x 19 mm

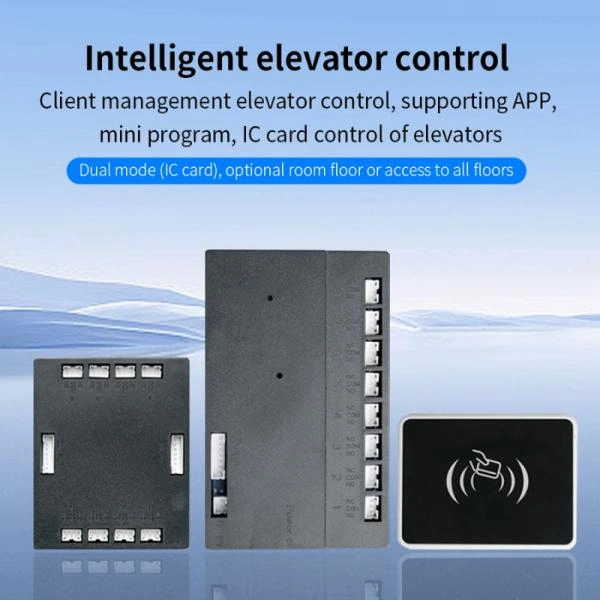

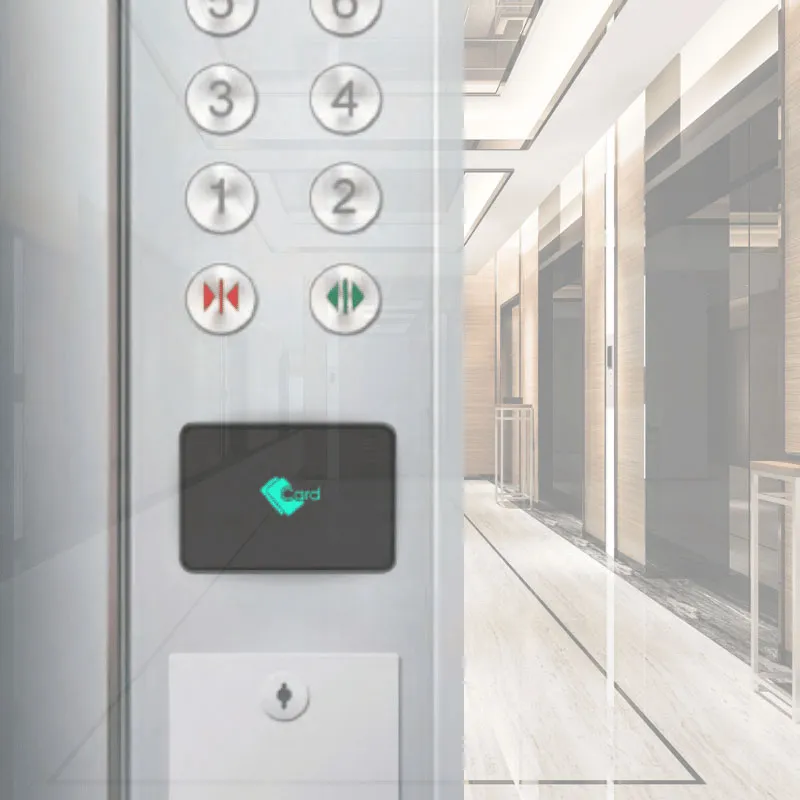

iLockey LC2 TThotel Lift Control

Restricts elevator floor access to authorized guest cards or App permissions.

Model: LC2
Control Mode: TThotel App, IC Card
Floors Supported: Up to 64 floors
IC Card Capacity: 1,000 users
Voltage: DC 9-16V
Local Log Storage: 2,000 records
Dimensions: 66 x 107 x 18.5 mm

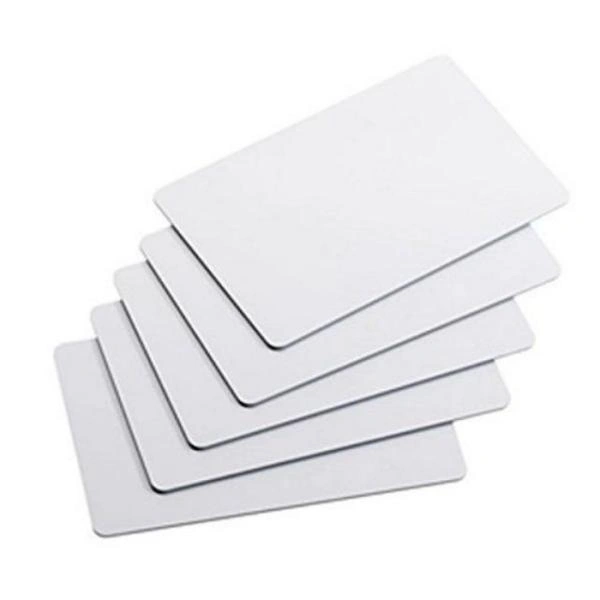

iLockey Encrypted Mifare 1 (M1) Hotel Card

Versatile 13.56MHz Mifare credentials designed for seamless access control and integrated energy-saving systems, providing a unified guest experience.

Model: Mifare 1K (S50)
Frequency: 13.56MHz
Encryption: Sector-level Mutual Authentication (Compatible with TThotel cloud encryption)
Memory Structure: 1K Byte (16 independent sectors)
Write Endurance: > 100,000 cycles
Material: Premium Waterproof PVC
Dimensions: 85.5 x 54 x 0.8 mm (Standard CR80)
