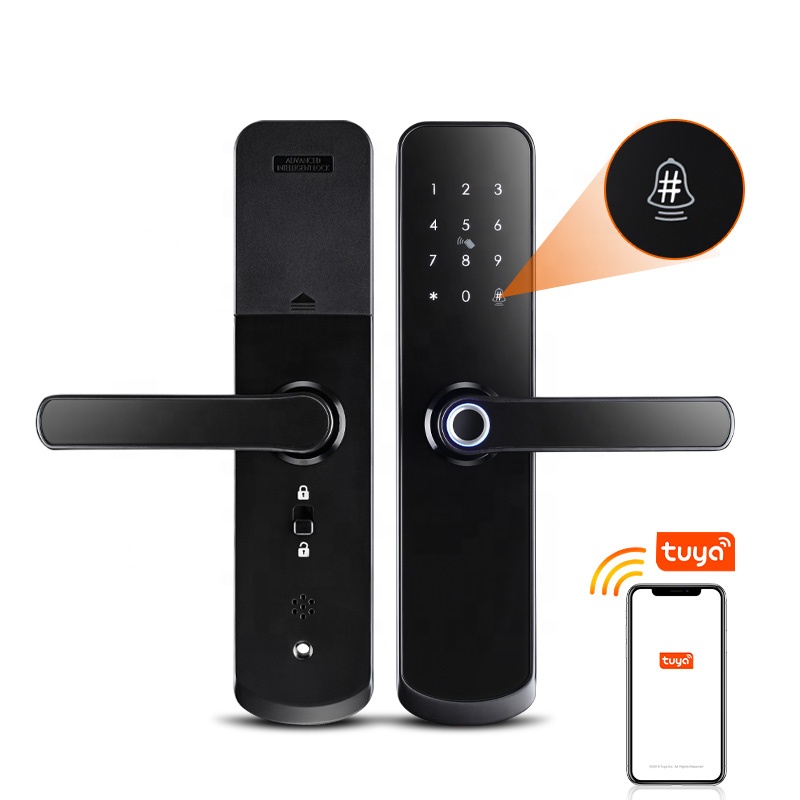

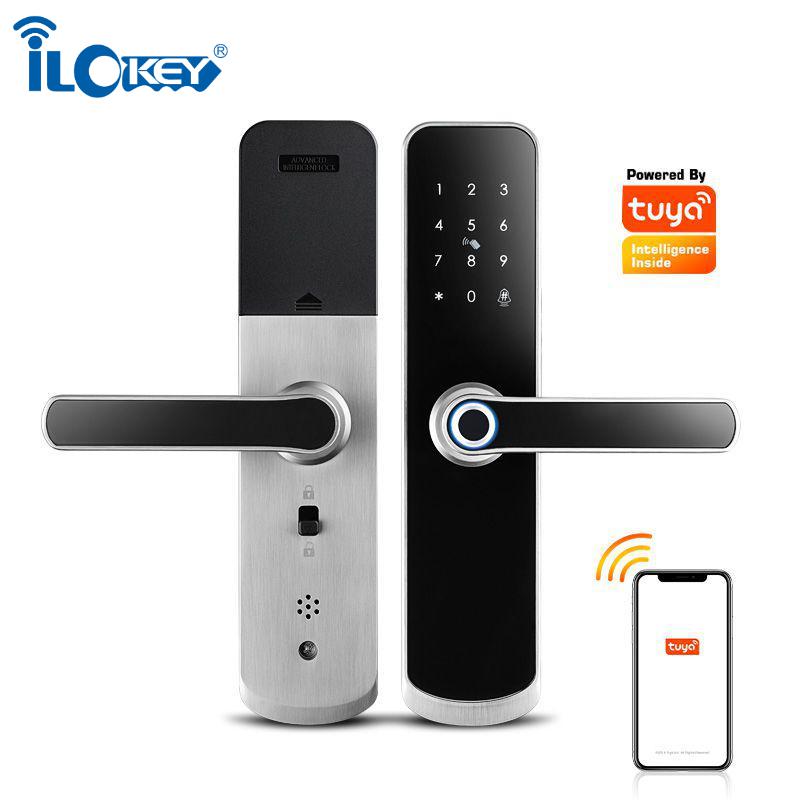

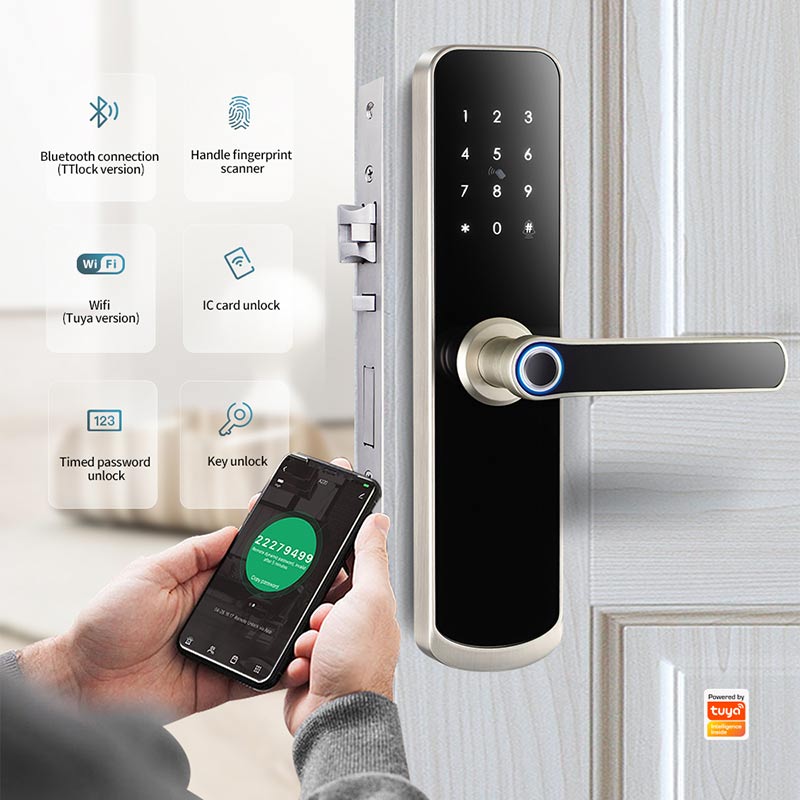

Tuya APP Wifi Electronic door lock with Euro mortise

The Euro standard mortise lock is Wifi, fingerprint, and touchscreen-enabled mortise lock.

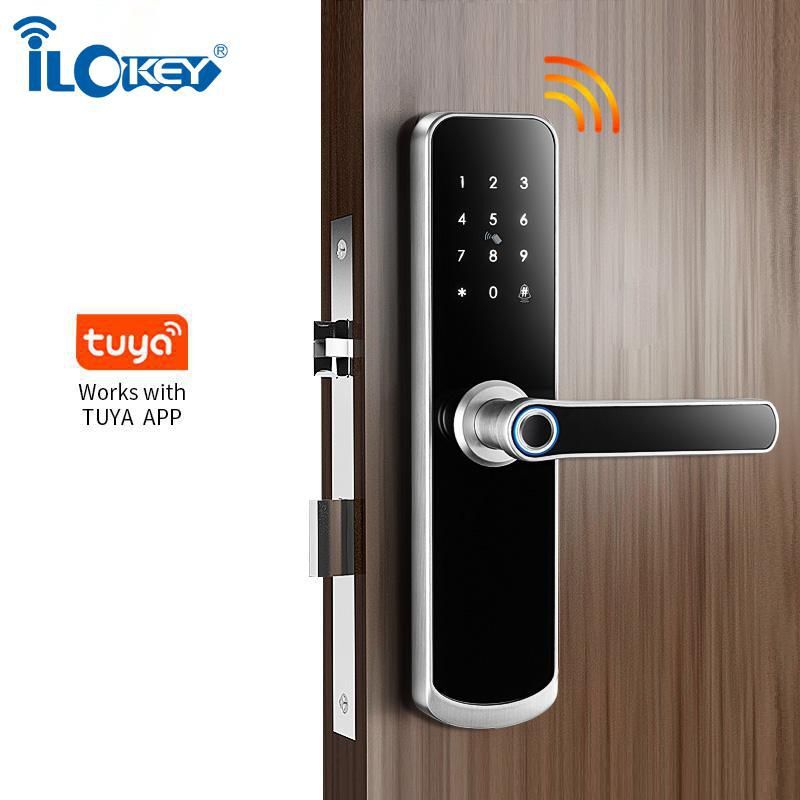

Elegant A260 is designed for European standards tuya smart lock,
which fills the gap in the European market, compatible with various European mortise 5050/ 6050 / 4585/ 6085/ 6072 / 5572/6052 to fit 99% doors, so be sure to double-check your mortise pocket measurements to make sure it will fit ok.

fingerprint code card icon_00

fingerprint code card icon


External Panel Dimension 68mm × 284mm × 21mm (including handle)

Material Shell Aluminum alloy lock body stainless steel
Available color Black/Satin Nickel
Communication Wifi
Unlock method app, passcode, card, fingerprint, key
Power Supply 4pcs AAA Alkaline Batteries, 12-18 months duration
Static Current ≦50uA
Dynamic Current <200mA
Unlock time 1~1.5 seconds
Working Temperature -20~50 degree
Working Humidity 20%~95%
Factory Passcode 123456, after setting, factory passcode will be invalid
Working Temperature -50℃-60℃
App name tuya app

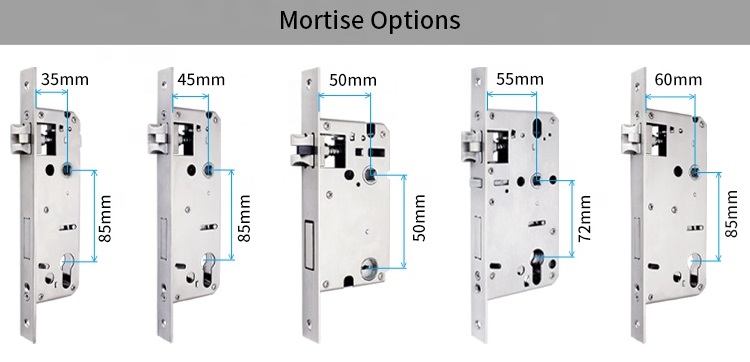

Mortise vairous mortise, 5050/ 6050/ 4585/ 6085/ 5572 / 6072/6052 Korean type mortise
Door Thickness Range 35-62mm
Waterproof grade IP44
User Capacity Card+Password+Fingerprint: 300 groups,9 groups administrators


Package & Shipping Term

Standard Export Quality Inner Box and Carton Packing

Package including Front panel, rear panel, mortise, and screw bag

Inner Single box sizes 33.7*17.7*12.9mm
Outer Carton box 61.5*41.5*32mm
Single lock gross weight 4.3.kg

Package Weight: 2.8kgs/piece;

Packging: 1pc/inner box; 10pcs/carton;


Shipping for smart door lock:

DHL/FedEx/UPS/TNT for samples, door-to-door service.

By air or by sea for bulk goods, airport/Seaport receiving goods.

Support Customers are specifying freight forwarders or selected shipping methods!

Delivery time: 3- 25 working days. Accurate delivery based on your quantity.
