The Ilockey Gateway converts Bluetooth electronic locks and Bluetooth access controls into online devices.
With an online connection via Wi-Fi, the locks and access controls transfer the recorded events to the Cloud,
through the Gateway, and devices can be managed remotely.

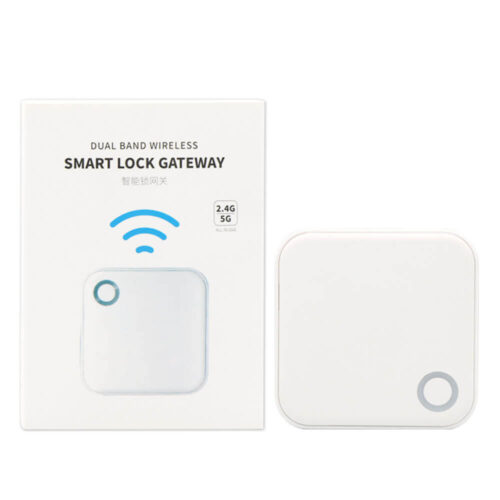

G2 Gateway For TTLOCK APP
Description

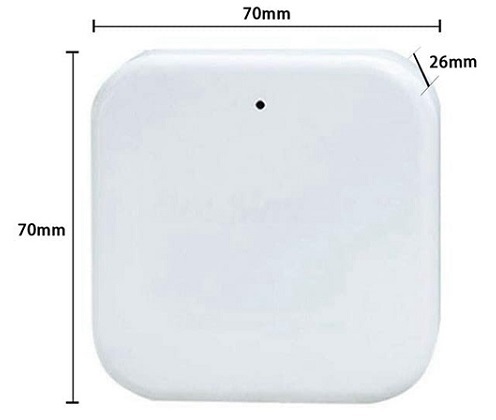

Dimensions (H x W x D)16.1 mm x 60.5 mm x 60.5 mm
Net weight 34 g
Status indicator Two LED indicators: Wi-Fi and Bluetooth
Operation button One power/reset button

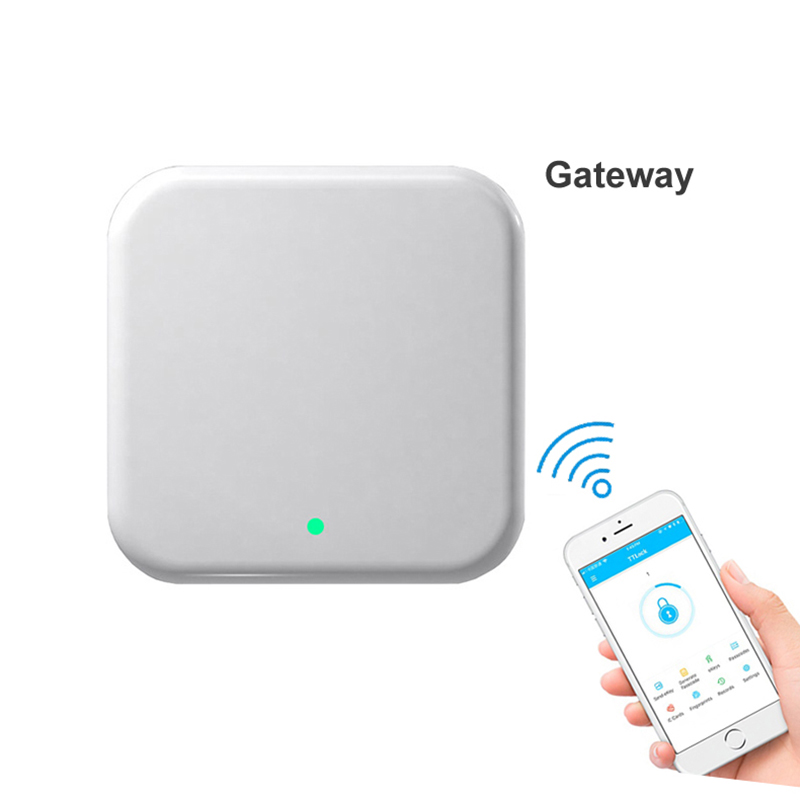

Communication mode TTlock App

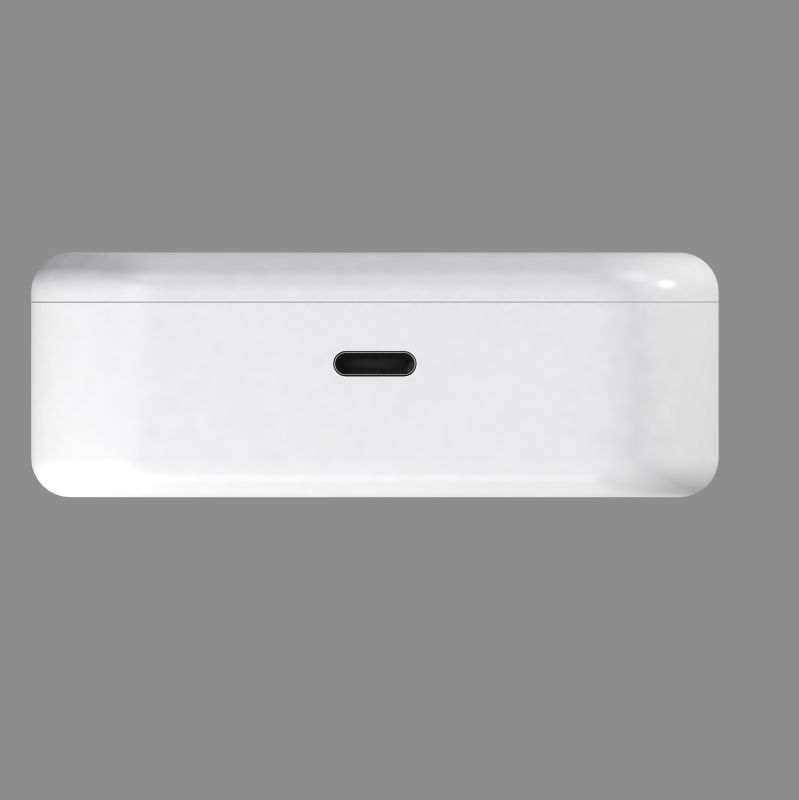

Power supply 5 V DC power over the Micro USB port
Working current < 1 A
Adapter output 5 V1A
Working temperature –10°C to +55°C
Working humidity 10% to 90% RH (non-condensing)
Storage temperature –20°C to +60°C
Storage humidity 5% to 90% RH (non-condensing)
Features
•Online Audit Trail
•Remote opening from Reception or via administrator smartphone
•Battery level control
•Access credential management
•Date / Time Update
Remote maintenance and management of electronic locks and Bluetooth access controls.
Control from the Reception PC and via Smartphone
Operation
The online TThotel system operates by double connectivity: Bluetooth and Wi-Fi.
Devices > Administrator
Electronic locks and access controls send the information via Bluetooth to the Gateway.
The Gateway, connected to a hotel Wi-Fi network, sends all the information received to the server to make it available for the administrator.
Administrator > Devices
The online functions the administrator executes remotely from their PC or Smartphone are transmitted from the server to the Gateway via Wi-Fi and channelled via Bluetooth to the locks and access controls.
When the administrator Smartphone and the lock or access control to be managed are within the Bluetooth range, they communicate directly via Bluetooth and transmit the information without using the Gateway or Wi-Fi.
To implement an online system, a Wi-Fi network, locks and/or access controls with Bluetooth connectivity from Ilockey are essential.
Package & Shipping Term
Standard Export Quality Inner Box and Carton Packing

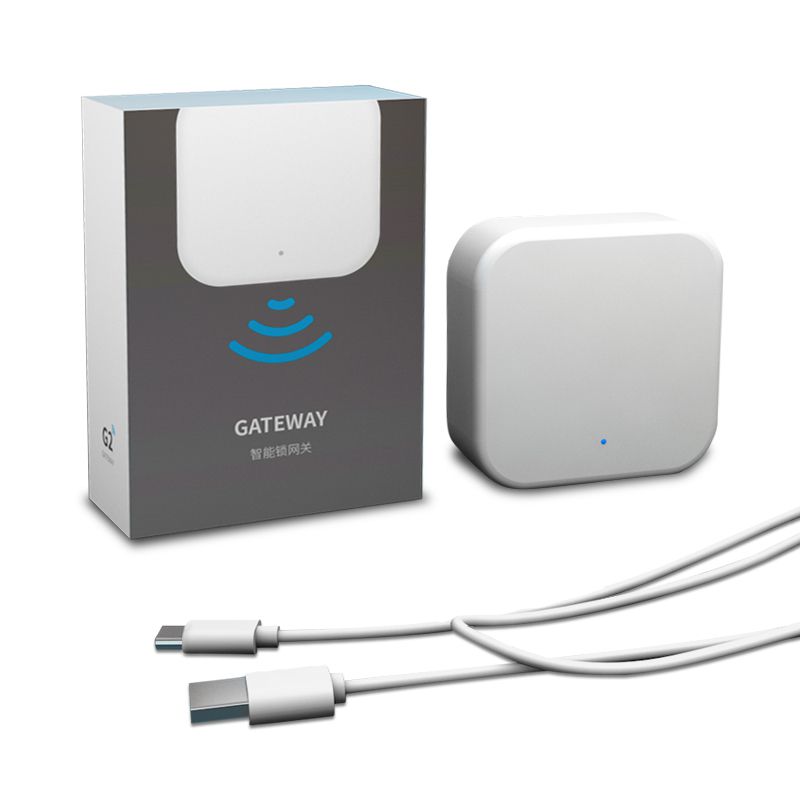

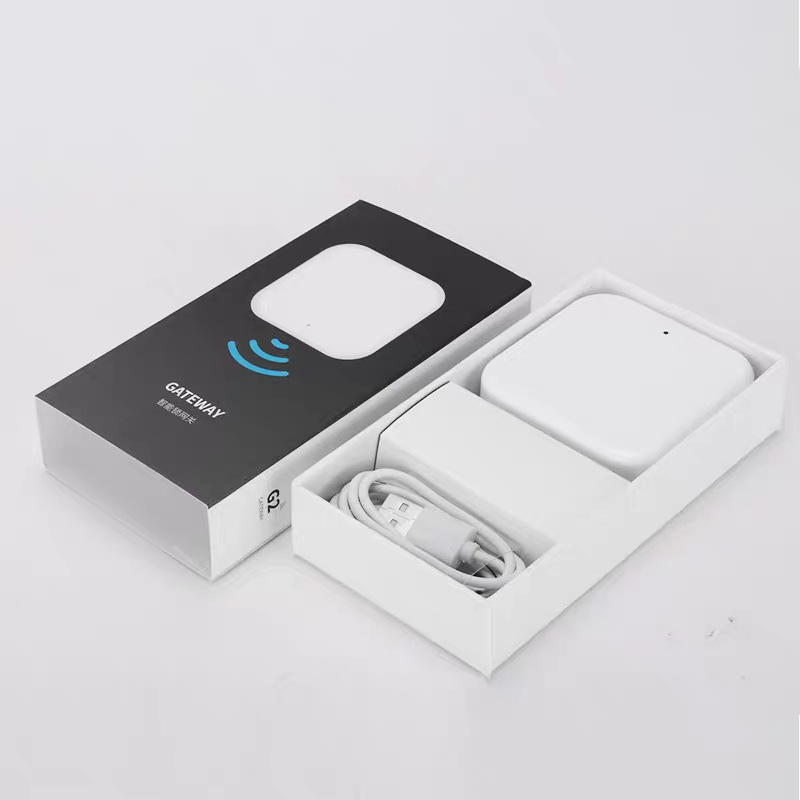

Package including G2 gateway and USB cable
Package size:
Inner Single box sizes 230*95*65mm
Outer Carton box 61.5*41.5*32mm
Single lock gross weight 0.8kg
Packing quantity of each carton 50pcs
Package details Carton box with EPE inside
Shipping for Gateway for smart door lock:
DHL/FedEx/UPS/TNT for samples, door-to-door service.
By air or by sea for bulk goods, airport/Seaport receiving goods.
Support Customers are specifying freight forwarders or selected shipping methods!
Delivery time: 3- 15 working days. Accurate delivery based on your quantity.
