TTLock 101: All You Need to Know

In this guide, we will cover all questions about TTlock, whether you want to know definitions, hardware, software, or some common faults of TTLock smart locks, you can find everything here. Read on to learn more.

1. What is TTLock?

TTlock is a smart lock brand that designs and develops hardware and software for smart locks. They use Bluetooth systems to manage smart locks, including smart hotel management, home security, and employee attendance systems. It is compatible with Amazon Alexa and Google Home.

You can unlock your smart door lock through the TTLock APP, send the electronic key to another TTLock account, and the recipient can unlock it through the TTLock APP. You can set the password or card usage time for the tenant, and the tenant can log in by himself. In addition, you can also view the unlock log in the smartphone app at any time.

Here are the main features of TTLock:

1) Send e-key

Sending e-keys allows you to share your eKey with people you choose! Just simply select the “Send e-Key” option and choose the type of e-key you want to share. Users can use options such as “Timed” and “Permanent”. Through these options, he can set a time limit for the electronic key.

2) Generate and send a password

You can generate an arbitrary password and send it to your friend. It makes sharing access easy and convenient.

3) Schedule Password

You can set a password that activates in a fixed pattern only for a certain period of time, it can be done by selecting the type of password you want, from fixed and timed passcodes.

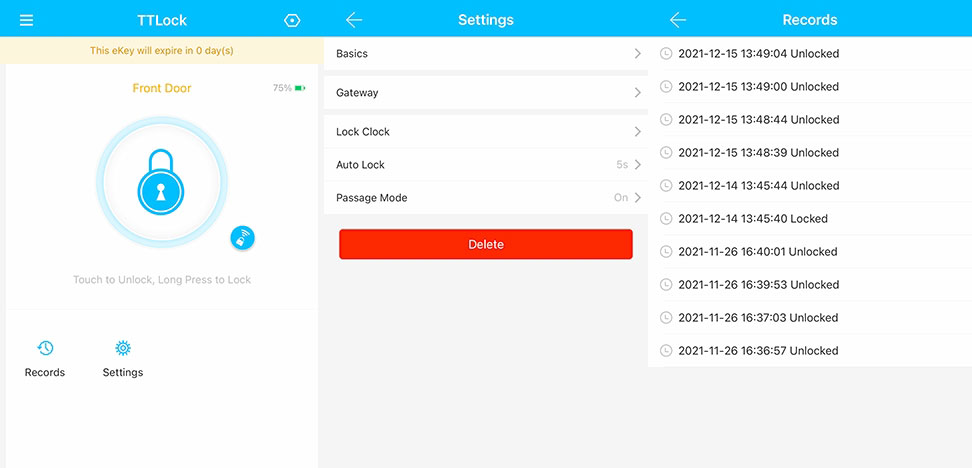

4) Record

You’ll know who opened the lock and when it was opened, what unlocking method the person used, and more. These constant notifications allow you to constantly monitor activity on your digital door lock.

5) Transfer and Share Management

You can transfer admin privileges to whomever you choose at random, or another option called “Share Admin” allows you to share your admin privileges with specific people if needed.

6) Change existing password

You can modify the time period assigned to certain types of ciphers. This means that you can change the time-dependent specification of password-sharing access by simply selecting this option. Users should be well-versed in the features available in the application.

2. Benefits of  TTLock

By using TTLock, you can lock and unlock your door using your smartphone or a PIN code that you can send directly to guests. This is truly a real game changer for vacation rental landlords trying to avoid time-consuming key exchanges.

In the past, an RFID hotel lock was the common choice for most hotels, The guests need an RFID card to open the room door, and after leaving, you need to return the card to the hotel. However, when you use TTLock smart locks as a keyless lock system in your hotel, your hotel guests can unlock the hotel room by phone. Now, TTLock has provided their TTHotel solution to solve the problems of hotels, it make TTLock more convenient for hotels.

However, it is not the only reason why people choose TTLock, the following advantages is a supplement for custom satisfaction:

• For the guests who looking for an affordable way to secure their valuables, the TTlock app is an excellent choice.
• With the TTlock app, you won’t have any connection issues or get caught in the middle of important transactions due to an unreliable device.
• TTLock is simple in design and easy to install. Your smartphone or tablet will work seamlessly with it after it has been installed in just a few minutes.
• TTlock software is also free and comes with a high-quality customer support service, ensuring you are always connected when you need it most.
• With the TTlock door lock system for hotels, you can bring the ultimate mobile and contactless check-in experience to your hotel.

However, TTLock also has its disadvantages, before you make a decision, you can’t ignore its disadvantages:

• In addition to smart locks, TTLock does not support any other smart home products.
• TTLock is used by fewer manufacturers, so it is sometimes slightly more expensive.

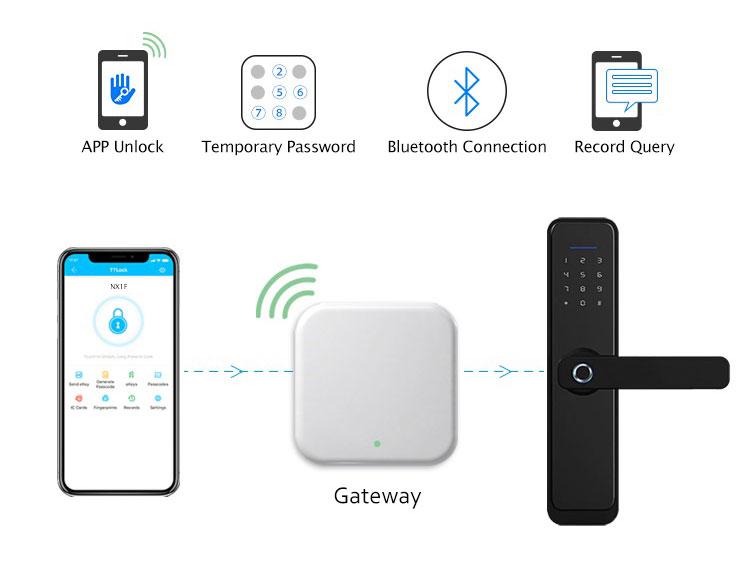

3. How does TTLock work?

After research, TTLock provides you with four ways to open the door: mechanical key, password, mobile app, RFID card, and fingerprint. When you are at home, you can use mechanical keys, passwords, mobile apps, RFID cards, and fingerprints to open the door;

When you are away from home, you can send a code or use a mobile phone app (gateway-connected door lock) to unlock the door. This is loved because it allows people to enter your house even without a cell phone! Further, TTLock offers two products: one for residential properties and one for commercial properties.

If you use residential products in homes and apartments that are rented or owned by families or individuals. You can do business development in hotels, offices, and guesthouses. However, the commercial product works differently than the residential product; for example, instead of getting their app through this locking system, users access it through an administrator-managed website.

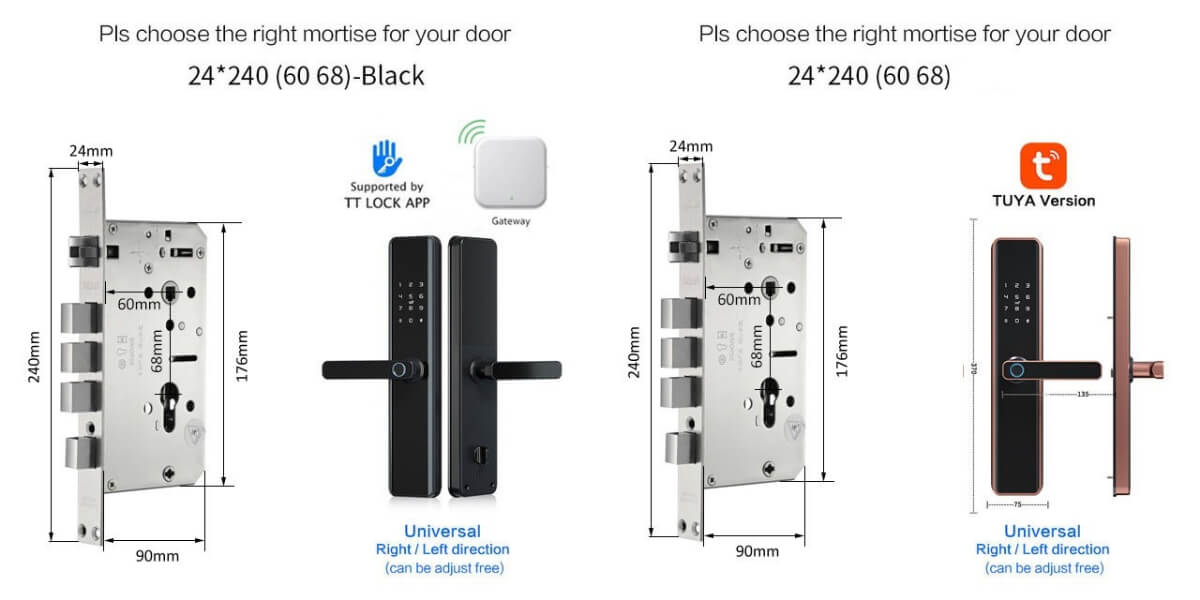

4. TTLock Hardware

Please note, that TTLock company doesn’t produce locks directly but provides PCBA and lock accessories. The smart lock manufacturer can produce TTLock-compatible smart locks with its PCBA and lock accessories. So if you are looking for some TTLock smart lock, you should ask the smart lock factory which PCBA or accessory are using for their locks. Different functions will need different TTLock hardware, check with your smart lock supplier.

Now, we will step by step to show you the details of each TTLock hardware:

1) PCBA

PCBA is the core module of smart lock, it will directly decide the function of your smart lock. TTLock provides 19 common PCBA and 9 customized PCBA, these modules can be used in most smart locks on the market. Here are the specifications:

#1 Common PCBA

Image	Name	Model	Size	Function
	Ble module	SN-9243	24.5*29mm	APP unlocking Remote unlocking
	WiFi module	SN-491	20*30.5mm
	Deadbolt lock PCBA	SN-138	52*70.5mm 43*60mm	APP unlocking Password unlocking
	Deadbolt lock PCBA	SN-9274/378	40*54mm 42.8*63.5mm	APP unlocking Fingerprint unlocking Password unlocking IC card unlocking Remote unlocking
	Apartment, home lock PCBA	SN-9284	42.5*70mm 26.6*9.5mm	APP unlocking Fingerprint unlocking Password unlocking IC card unlocking
	Apartment, home lock PCBA	SN-9149	60*41mm 70*42.5mm	APP unlocking Fingerprint unlocking Password unlocking IC card unlocking
	Apartment PCBA		36*60mm	APP unlocking IC card unlocking
	Aluminum lock PCBA	SN-242	30*87.7mm 28*87.7mm	APP unlocking Fingerprint unlocking Password unlocking IC card unlocking
	Handle lock PCBA	SN-195	20*139.5mm	APP unlocking Fingerprint unlocking
	Small lock PCBA	SN-9274	40*54mm 17*31mm	APP unclocking Fingerprint unlocking Password unlocking IC card unlocking
	Padlock PCBA	SN-275	16.9*26.9mm	APP unlocking Fingerprint unlocking
	Home, hotel, apartment lock PCBA	SN-340	125*60mm 12.1mm	APP unlocking Fingerprint unlocking Password unlocking IC card unlocking
	Parking lock PCBA	SN-155	44*63mm	APP unlocking
	Access control PCBA	SN-249	66.4*78mm 48.6*64.8mm	APP unlocking Fingerprint unlocking Password unlocking IC card unlocking
	Glass lock PCBA	SN-239	48*60mm 46*62mm 62.1*101mm 22.2*16.6mm	APP unlocking Fingerprint unlocking Password unlocking IC card unlocking
	Cat eye automatic lock PCBA	SN-466	36*102.5mm 42.5*58mm	APP unlocking Fingerprint unlocking Password unlocking IC card unlocking
	3D face recognition PCBA	SN-400	50*78.5mm 42.5*58mm	APP unlocking Fingerprint unlocking Password unlocking IC card unlocking Face recognition
	Wifi Lock PCBA	SN-465	50*81.5mm	APP unlocking Fingerprint unlocking Password unlocking IC card unlocking Remote unlocking
	NB-ioT lock PCBA	SN-188/255	50*81.5mm	APP unlocking Fingerprint unlocking Password unlocking IC card unlocking Remote unlocking

#2 Customized PCBA

Image	Name	Size	Function
	Deadbolt lock	62.5*84.3mm 62.5*64mm	APP unlocking Password unlocking
	Wooden door lock	47*60mm 55*55.3mm 15*41mm	APP unlocking Password unlocking IC card unlocking
	Hotel lock	48*66.5mm 48*53.2mm	APP unlocking IC card unlocking
	Access control lock	50*74.6mm 50*56.5mm 25*36mm	APP unlocking Fingerprint unlocking Password unlocking IC card unlocking
	Handle lock	28.5*143mm	APP unlocking Fingerprint unlocking IC card unlocking
	Cabinet lock	38*50mm	APP unlocking IC card unlocking
	motherboard Safe lock	53.5*66mm 71*82 33*58mm 8*20mm	APP unlocking Password unlocking IC card unlocking
	Round ball lock motherboard	53.5mm 53.5mm 47.8*22mm 5*16mm	APP unlocking Fingerprint unlocking Password unlocking IC card unlocking
	Ball handle lock motherboard	29.5*50mm 23.2*48.2mm 8.7*12mm	APP unlocking Password unlocking IC card unlocking

2) Accessory

TTlock accessories can be divided into 3 main types: Gateway, unlocking tools, and lock control tools. As the specifications are different between different accessories, it isn’t convenient to list in a form. Here we don’t list their specification, just list their functions. You can check the specifications on the TTLock website.

Image	Name	Function

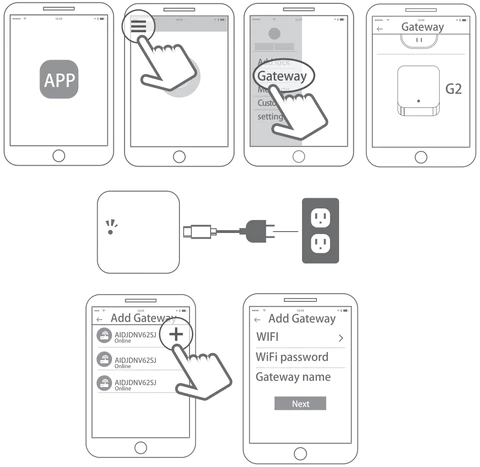

	Smart Gateway G2	The bridge between the Bluetooth smart lock and the server can read the unlocking records of fingerprint/password/card in time and report alarm information; remotely manage fingerprint/password/card user information; calibrate the lock clock;
	4G gateway G4	The bridge between the Bluetooth smart lock and the server can read the unlocking records of fingerprint/password/card in time and report alarm information; remotely manage fingerprint/password/card user information; calibrate the lock clock;
	Wired gateway G3/G3P(PoE power supply)	The bridge between the Bluetooth smart lock and the server can read the unlocking records of fingerprint/password/card in time and report alarm information; remotely manage fingerprint/password/card user information; calibrate the lock clock;
	Card Issuer E3	Card reading and card issuance are combined into one, which is suitable for Haofang Butler, Tongtong Hotel, and Tongtong Lock web versions.
	Card encoderE4	Card reading and card issuance are combined into one, which is suitable for Haofang Butler, Tongtong Hotel, and Tongtong Lock web versions.
	K2/K2F	It is easier to open the door with a mobile phone, and intelligent attendance, data statistics, and remote management are simpler and more efficient. (K2 normal version, K2F with fingerprint)
	K3/K3F/K3Q	It is easier to open the door with a mobile phone, and intelligent attendance, data statistics, and remote management are simpler and more efficient. (K3 normal version, K3F with fingerprint, K3Q with QR code).
	REMOTE R1	Unlock the door without using a phone.
	Wireless Keypad	The keyboard is separated from the lock and can be placed anywhere. It is suitable for old lock renovation, adding passwords, and Bluetooth functions.
	Card switch ES2	Plug-in card for power, intelligent management, hotel dedicated
	Fingerprint Entry Device F2	It supports remote input and issuance of fingerprints and needs to be equipped with NB-IoT smart locks and smart public rental housing.

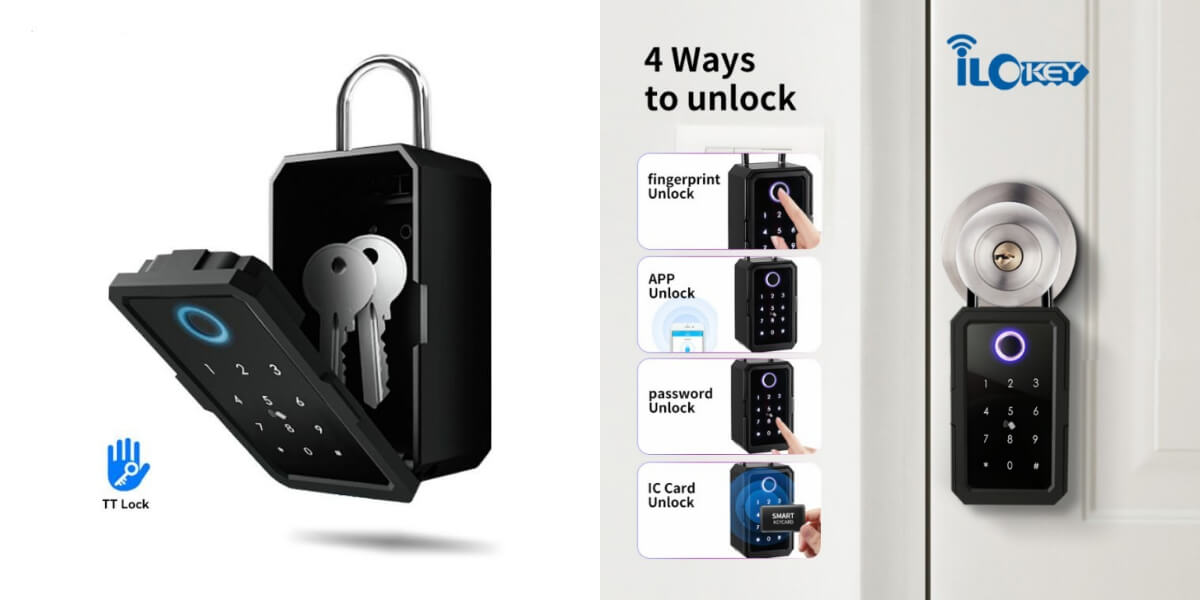

	Key box KB2/KB2F	You don’t need to change the lock to make it smart.KB2(password)/KB2F (fingerprint and password)
	Door Sensor DS2	Door closing automatic locking, door status query, record query
	Lift control LC2	Support mobile phone, credit card control, intelligent management, hotel hotel-dedicated

5. TTLock Software

At present, there are 8 TTLock software on TTLock, TTLock App, Web console, TTHotel, TTRenting, Supplier System, Sciener Client, Lockology, and TTology. Every software has its unique function, here we introduce them one by one.

1) TTLock App

TTLock App is used to unlock your smart lock with your Phone. The TTlock App communicates with the lock through Bluetooth BLE to realize functions such as unlocking, locking, upgrading hardware, and reading operation records for you. The APP can manage all kinds of smart locks, including doors, parking lots, safes, bicycles, etc. Currently, the TTlock App is available in 3 languages: English, Spanish, and Chinese.

For the daily application, the TTLock app makes it easy to keep track of your locks and other security devices. Give friends or family access to your space with a simple share button, and you can revoke that access if necessary. With this function, TTLock smart locks are widely used in Airbnb, it is also the main lock that iLockcy recommends to our Airbnb customers to use. Now our TTLock smart lock for Airbnb has served over 100 clients in the world and received a lot of positive feedback.

Besides, the app also helps you control all the main functions of the lock. Unlike many other home automation apps, TTLock does not require a hub or subscription to use the available features. After you download the app, connect it to your lock using Bluetooth or Wi-Fi, and you’re ready to go!

Anyway, with the TTLock app, you can manage lock access and share temporary or permanent entries. Using the TTLock application is very simple, after installing and connecting to the lock on your device, you will see a list of all locks that have been added to the application.

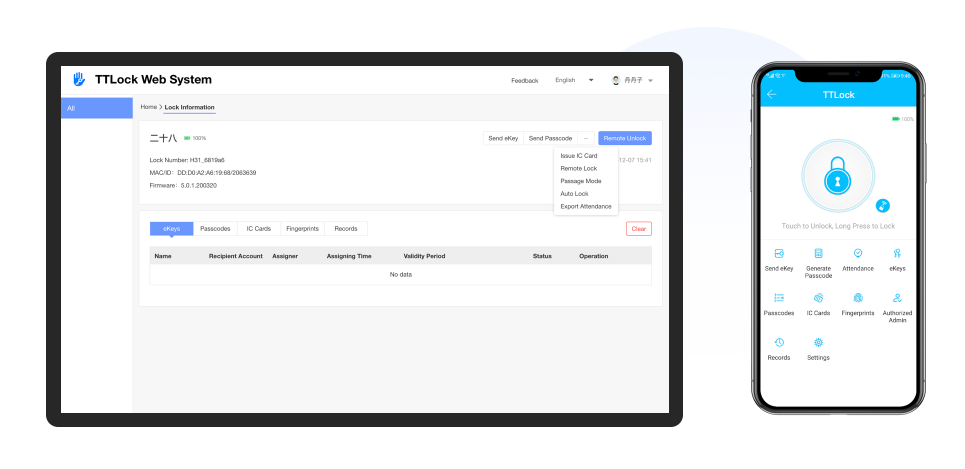

2) Web console

TTLock web console allows you to manage your smart locks on the cloud system with 5 main functions. Here are the details:

• ekey management: Send, delete, block ekeys
• Passcode management: Generate passcode without lock connecting to the network
• Card management: Issue cards to specific locks
• Remote operation: Lock or unlock remotely via the gateway
• Admin management: Grant others to be the admin of locks
• Access logs export: Export access logs to Excel.

3) TTHotel

TTHotel is a smart hotel management system in the TTLock system, it is designed for both staff and guests. Here are the functions:

• Room status and type: Do check-in and check-out according to the room status
• Multiple unlock methods: 4 unlock methods are available for your hotel
• Reserved sectors: Reserve sectors for other purposes
• Lock clock management: Calibrate time with the app
• Unlocking records: Collect records with the app and look them up on the PC or APP
• Device management: Locks, card encoder, lift controller, card, gateway, power saver

4) TTRenting

TTRenting is an easy and functional long-term property management system for your rental. Here are the functions:

• Whole rental and sharing rental: Meet the requirement of management of different operating model
• Rental notification: Send notification to guests for the rental payment
• Manage Utilities: You can manage your utilities in your house, like water, electricity, gas
• Online contract: Sign contracts with guests online
• Fault report: Guests submit information about faults with the App
• Cloud system and mobile application: Manage your business on a cloud system or mobile application

5) Supplier system

The TTLock supplier system is used to manage hotel customers for lock manufacturers and distributors. There are 3 ways to help manage the hotels: Create a hotel account, Block a hotel account, and Unblock a hotel account. Here are the functions:

• Manage sub-distributors: Create accounts for sub-distributors, look up their hotels
  Restrict card purchasing: Restrict the hotel can only buy cards from you
• Encrypt and Decrypt cards: Encrypt or Decrypt the cards for hotels

6) Sciener Client

TTLock science client is used to review the sales of your locks and manage your users. Here are the functions:

• Lock list: View all locks you sold
• Customer list: View all your customers who buy your locks
• Statistics: View your sales of locks and increase in customers
• Block users: Block users from using software

7) Lockology

TTLock Lockology provides multi-level management, permission management, and cloud storage of operation records. Here are the functions:

• Clear And Visible Data: Data presentation through graphics and text
• Easy And Effortless Management: Divide personnel into departments and roles to achieve permission management
• Convenient And Efficient Work: Online lock opening and closing operations

8) TTology

TTology is used for efficient hierarchical management leading to a new height of productivity liberation. At present, this is a new product, and TTLock doesn’t provide enough information. iLockey will keep updating when there is any update.

6. How to Setup TTlock?

A TTLock account can manage multiple smart locks, and TTLock can work with all Smart DL and SDL locks. Here we will guide you step by step to set up TTLock.

1) Download the App

You need to download the TTLock App on your mobile phone, Here is the download link, choose what you need:

• Click here to open the application on an Apple device.
• Click here to open the application on an Android device.

You can also download it from the Apple Store, TTLock App currently supports both Android and iOS operating systems. Please make sure your phone has enough space to access all APP features.

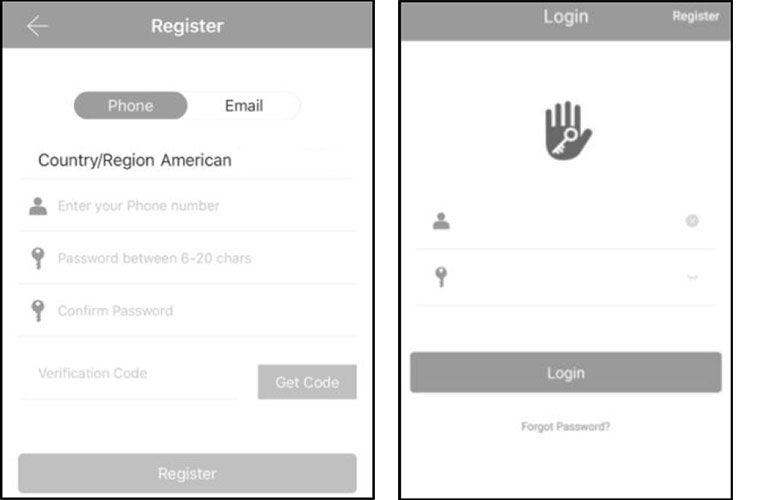

2) Login to the TTLock Account

You will need a TTLock account to manage the lock, If you are the first time to use TTLock, you need to register a new user account. If you already have an account, you can log in directly with your account credentials.

Note:

• Please enable Bluetooth on your mobile phone before continuing.
• All operations should be done within a one-meter radius of the lock.

3) Adding Your Smart Lock to the TTLock App

Before you add a lock, make sure it is compatible with TTLock App. If you are not sure, please ask your TTLock smart lock supplier. Besides, please read the following notice before starting the operation.

Note:

• The default password of TTLock is 123456.
• After you complete this step, you will be the lock’s Bluetooth administrator. However, a given lock can only have one Bluetooth administrator, so you should make sure you have set the right administerator.
• With administrator privileges, you can add more users, but Bluetooth administrator has the highest privilege level.
• If you want to remove the Bluetooth admin, you can use “Factory Reset” function. You can see the guide in the user manual.

Everything is ok, now, let’s start adding the lock.

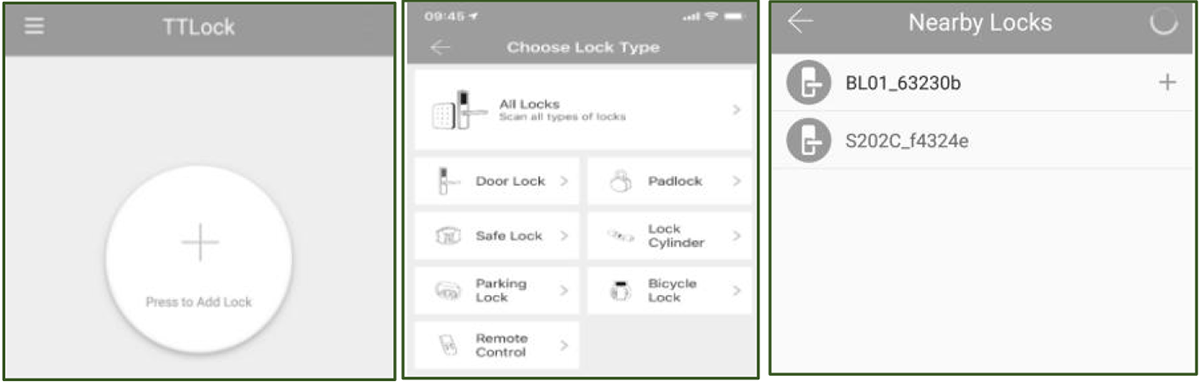

First, tap the ‘Press to Add Lock’ button on the following image. Then, tap the ‘All Locks’ button.

Important:

• Make sure your smart Lock is active (or the keypad is lit). If not, touch or slide your finger across the keyboard until it lights up.

At this point, the TTLock app will scan for nearby locks, and once you find a lock, tap the “+” button next to the correct lock.

Next, you can enter a lock name. For example. iLockey Room 1

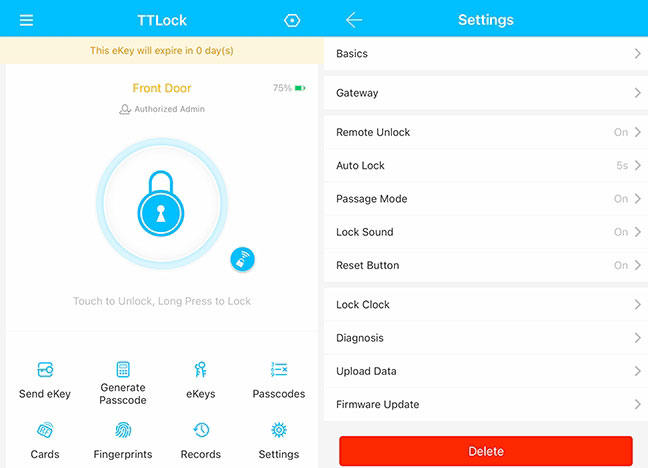

If successful, you will be taken to the home page of the new lock. The lock is now added to your account and ready to be configured.

7. How to Create new users on TTLock

TTLock allows their users to enter the room by password, IC card/key fob, fingerprint, and e-key. According to the type of electronic key, you can set a user for basic or administrative access to the lock. You can change or delete users as many times as you want. Here will show you how to add new users on TTLock, it includes configuring new passwords, IC cards/fobs, and fingerprints; creating and sending electronic keys; and creating authorized administrators. Let’s start:

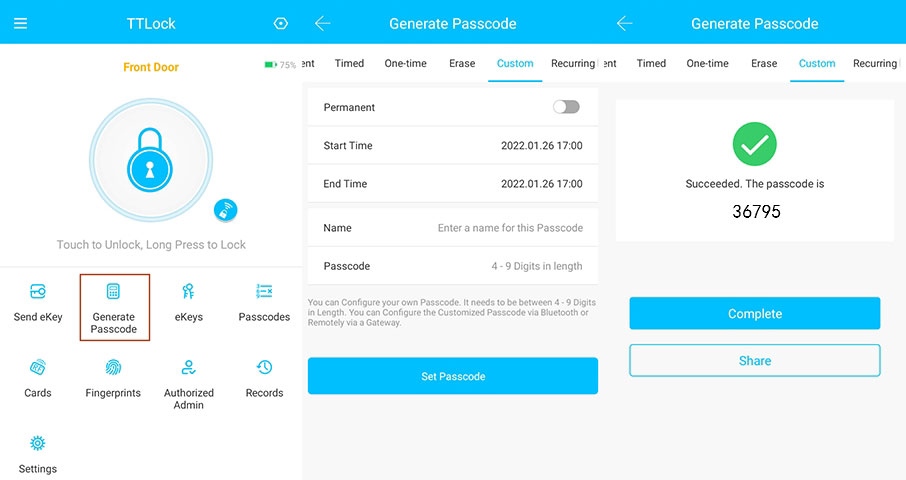

1) Set a password

TTLock provides various types of passwords, like permanent, time-limited, one-time, repeating, etc. You can create any type of password based on each user’s access requirements. Additionally, you can generate random passwords or custom passwords with 4 to 9 digits long.

• In the homepage options, click “Generate Password”.
• Select the type of password you want to create through the navigation tabs.
• Enter a password name; validity period (if required); and password (if generating a “custom” password).
• Click the “Set Password” button to create a new password.

2) Register IC card/key fob

A key card or fob can also be activated to unlock your smart door lock. You can choose to configure a 13.56 MHz IC card or key fob according to your needs. The same card/key fob can be registered on multiple locks.

NOTE: This operation must be performed near the lock.

• Tap “Cards” on the locked home screen.
• Select Add Card from the context menu in the upper right corner of the screen.
• Select the type of card (i.e. permanent or timed) you want to enroll in via the navigation tabs.
• Enter the card or key fob details and period of validity (if required) and tap ‘OK’.
• Touch the card/fob to the exterior lock panel card/fob reader area (on the keypad)

You also have the option to register the card/key fob remotely (away from the lock) by selecting “Remotely add card”, and then tapping the card on the phone.

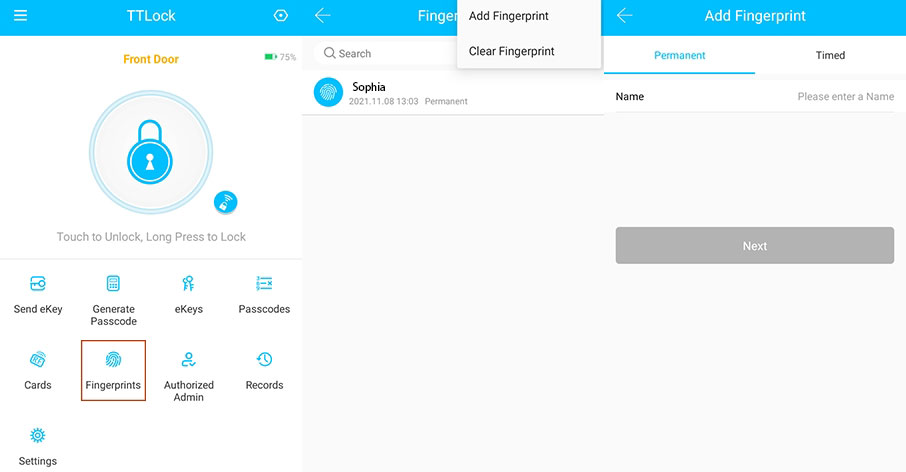

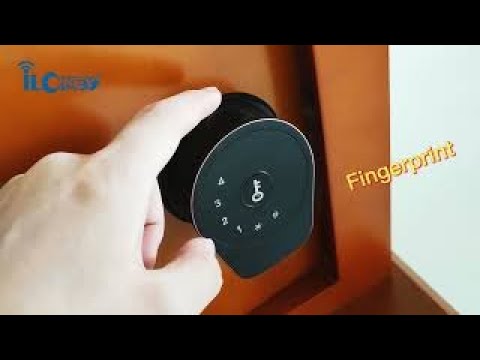

3) Register fingerprints

Fingerprint access is a key-unlocking method of smart door locks, you can register a fingerprint by following the steps:

• Tap “Fingerprint” on the locked home screen.
• Select Add Fingerprint from the context menu.
• Enter fingerprint details and a valid time period (if required), then click Next.

NOTE: You should operate near the lock.

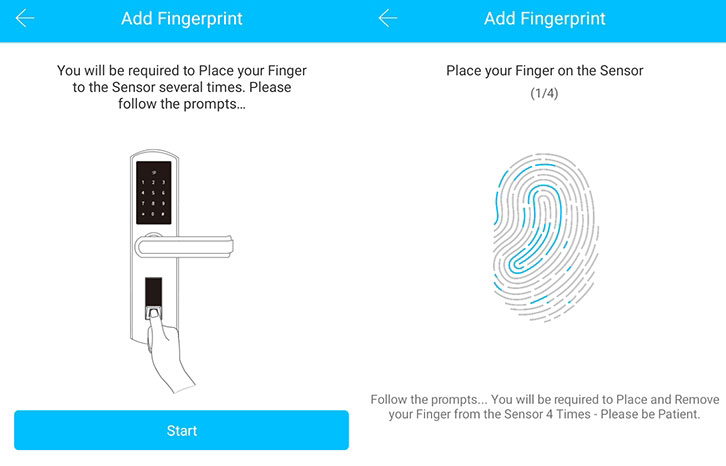

•  Click the “Start” button and start the fingerprint scanning process.
•  Follow the instructions on the screen. You will need to place your finger on and off the sensor four times.

Tips: You can register multiple fingerprints for the same user in different finger positions and with different fingers.

4. Send e-key

E-key allows the user to access the door either near the lock or remotely using a phone app via Bluetooth. You can send e-keys to your users to grant the app access to the lock. Here is the guide to send e-key:

• Tap “Send e-Key” on the home screen of the lock.
• Select the electronic key type (i.e. timed, permanent, one-time, repeating) via the navigation tabs.
• Enter the recipient’s TTlock account username and name and valid time period (if required).
• If necessary, you can choose to allow the “Remote Unlock” function.
• Click “Send”.

NOTE: Recipients must have the TTLock app installed and registered with TTLock before receiving the e-key.

Recipients will be notified on the TTLock app when the electronic key has been sent. You also have the option to email recipients with electronic key information. E-key recipients will have access to simple settings and simple records showing when the lock was accessed, but not by whom.

5. Send authorized administrator electronic key

If you like, you can also make someone an authorized administrator of a lock, it will allow them to access the app to the lock. You can allow them in through the app via Bluetooth near the lock or remotely (if you selected “Remote Unlock” when creating the electronic key). They can also gain access to other areas of the app that the recipient of the basic e-key does not, including the ability to add other users. Here is the steps to send the authorized administrator electronic key:

• Tap “Authorize administrator” on the locked home screen.
• Click on the authorized administrator menu in the upper right corner of the screen, then click “Create Administrator”.
• Select Manage Electronic Key Type (i.e. Timed, Permanent) via the Navigation tab.
• Enter the recipient’s TTlock account username and name and valid time period (if required).
• If necessary, you can choose to allow the “Remote Unlock” function.
• Click “Send”.

NOTE: Recipients must have the TTLock app installed and registered with TTLock before receiving the electronic key.

Recipients will be notified on the TTLock app when the electronic key has been sent. You also have the option to email recipients with electronic key information.

8. TTLock Smart Lock Recommend

Since its introduction in 2020, the X5 smart room door lock has become a popular product in the market due to its coordinated golden design ratio, high value, and stable performance. Consumers of smart door locks around the world are flocking to it, and cumulative sales have exceeded 300,000 units, demonstrating its popularity and recognition.

The X5 smart room door lock is compatible with a full range of locks, including single latch, 5050 mortise, 85 series European standard locks, and 72 series European standard locks. This versatility makes it easy to install on different types of doors and meets the needs of different users. The X5 smart room door lock is widely used in both commercial and domestic applications, including shared flats, co-working offices, long and short-term rental hotels, homes, and other popular application scenarios. Its stability and convenience make it the top choice for different purposes.

In summary, the X5 smart room lock stands out in the smart door lock market for its attractive design, versatility, stability, and price, and is favored by many users. As it continues to win the market, the X5 will remain the top choice for those seeking a high-quality smart lock experience.

The K1 Entry Smart Door Lock, which we introduced to the market two years ago, has become one of our best-selling products. We sell at least 40,000 units per year, with our main markets being South Asia, the Middle East, South America, and Eastern Europe.

The popularity of the K1 entry door lock can be attributed to its unique design and excellent performance. Its long front panel allows it to be easily installed on most security doors. The toughened glass panel enables it to withstand high temperatures, increasing its durability and security. In addition, it is compatible with European Standard 5572/6085 latches, providing users with more installation options.

We offer two colors, black and red bronze, to cater to different users’ decorative preferences. This design allows users to choose the most suitable color according to their home style and preferences.

The K1 entry door lock excels in many ways, making it a best seller. Not only does it look great, but it also features high-quality materials and superb craftsmanship to ensure its long-lasting stability and reliability. This door lock not only provides safe and reliable access control but also offers users a comfortable and convenient experience.

The K1 entry door lock continues to sell like hotcakes in South Asia, the Middle East, South America, and Eastern Europe and has received unanimous praise from users. We will continue to improve and innovate to provide more high-quality smart door lock products to meet the needs and expectations of users in different regions.

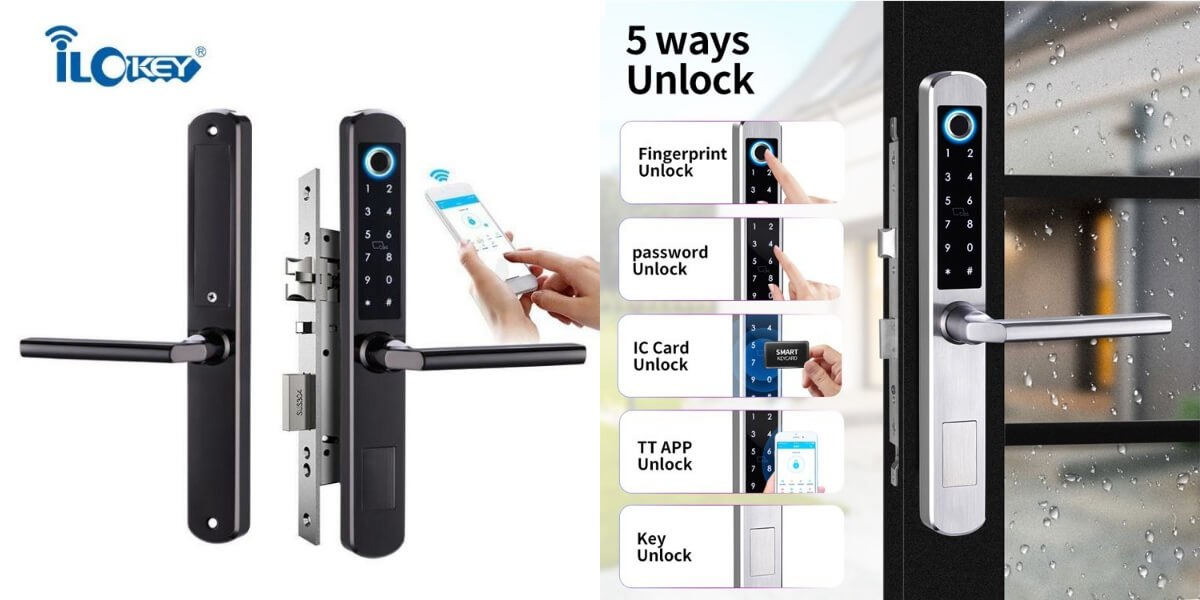

The A210 smart lock features an ultra-narrow design, making it suitable for aluminum alloy, PVC, and other narrow-rimmed door types. This provides more choices and convenience for door lock installation. The A210 smart door lock is made of stainless steel, which provides excellent corrosion resistance and durability, allowing it to adapt to various harsh climatic conditions over time while maintaining the quality and appearance of the door lock.

With its IP65 level waterproof performance, the A210 smart door lock effectively prevents water and dust from entering the lock body, ensuring stable operation in diverse climatic conditions. Its high quality, stylish appearance, and adaptability have made it the first choice for smart door locks in multiple regions and scenarios.

The A210 smart door lock is suitable for various environments, including Southeast Asia, Europe, Africa, and sea-front areas, meeting the needs of users in different regions. Its cumulative sales of 50,000 sets also prove that it is widely recognized and loved by consumers.

Overall, the A210 smart door lock’s high quality, stylish appearance, and adaptability make it the smart door lock of choice in multiple regions and scenarios.

The K3 is a new smart key box that offers a convenient way for users to keep their original mechanical keys safe and secure. This smart key box is suitable for a wide range of scenarios such as rental properties, shops, or homes, and brings many advantages and conveniences to the user.

The K3 Smart Key Box is uniquely designed to securely protect original mechanical keys. For rental properties or shops, owners can place spare keys in the smart key box to be easily accessed by tenants or employees when needed. In the home, spare keys can also be placed in the smart key box between family members to ensure easier and safer access to the home.

The K3 Key Safe features a minimalist, contemporary design that blends in nicely with a variety of environments and decor styles. Its compact design won’t take up too much space, making it suitable for a variety of placement locations. Using the K3 Smart Key Box is simple – users place their spare key into the smart key box and lock it to ensure the key’s security. When the spare key is needed, users can easily open the smart key box and remove the required key, which is quick and easy to operate.

The K3 smart key box is made of high-quality zinc alloy material and exquisite craftsmanship to ensure safety and reliability. The safe is equipped with a sturdy lock and security design to prevent unauthorized personnel from accessing the keys.

In summary, the K3 is a fully functional, safe, and reliable key safe that provides a convenient key management solution for rental properties, shops, and homes. Its flexible applicability and minimalist design make it widely used in various scenarios. For users, the K3 Smart Key Box is ideal for protecting and managing keys, ensuring their security, and providing a more convenient living experience.

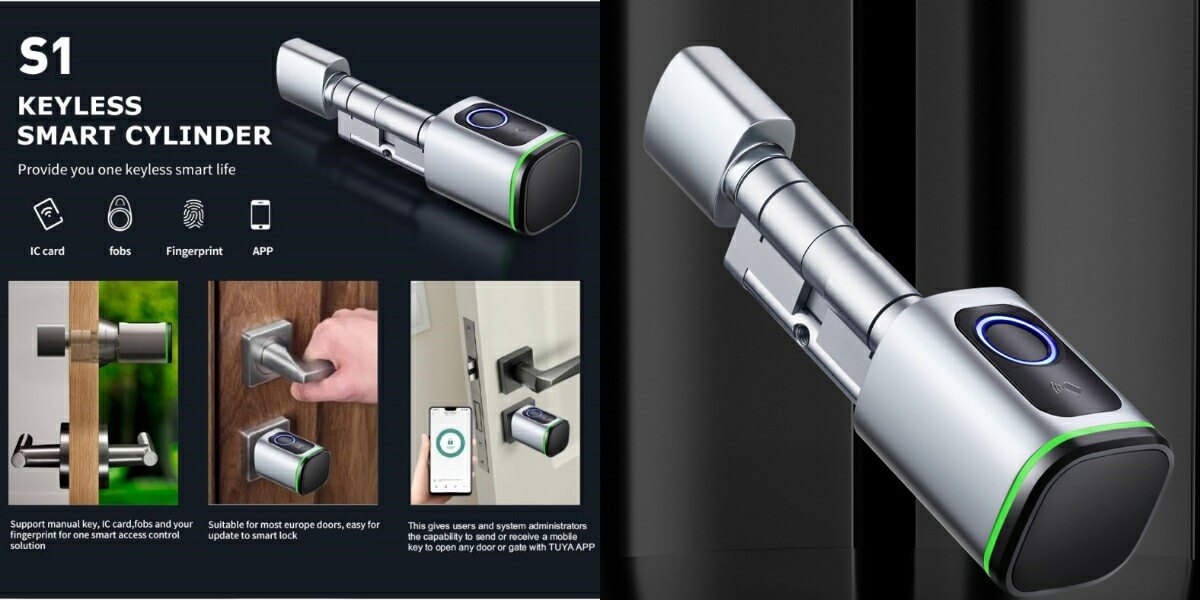

E Lock Cylinder is an innovative solution for updating European lock cylinders, which does not require replacing the entire original lockset, but only the cylinder components, making it the best choice for the DIY market. This E-smart cylinder is widely used in markets such as Europe and Australia where labor costs are high, providing users with an easy and efficient upgrade solution.

1) Main features

1. Simple and easy to use: The upgrade process of the E-cylinder is very simple, users only need to replace the cylinder parts, not the whole lockset. This makes it easy for the DIY market to complete the upgrade without the need for technical expertise and high labor costs.
2. Cost-effective: Replacing only the cylinder components is less expensive than replacing the entire lockset, and the E-cylinder offers a cost-effective solution that saves users money and time.
3. Strong compatibility: E-cylinder is widely used in European-style locks, it is compatible with all kinds of European-style locks. Whether it is interior doors, exterior doors, or locks in different places such as homes and offices, users can easily upgrade with an E lock cylinder.
4. High quality and safety: E lock cylinder adopts high-quality materials and advanced technology to ensure its stable and reliable performance. The cylinder components are precisely designed to provide excellent security and prevent unauthorized personnel from unlocking the door.
5. Meet market demand: In markets with high labor costs, such as Europe and Australia, the E-cylinder’s convenient upgrade solution is widely used. It provides users with a flexible and economical lock update option, which is favored by users.

Overall, the E-cylinder is an innovative smart locking solution whose simplicity, affordability, and high quality make it the preferred choice for the DIY market and markets with high labor costs. With the E Lock Cylinder, users can easily upgrade their locks intelligently, improving security and convenience.

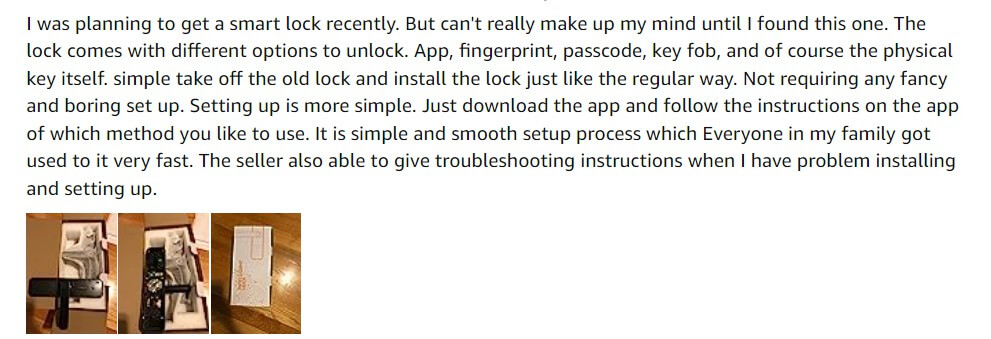

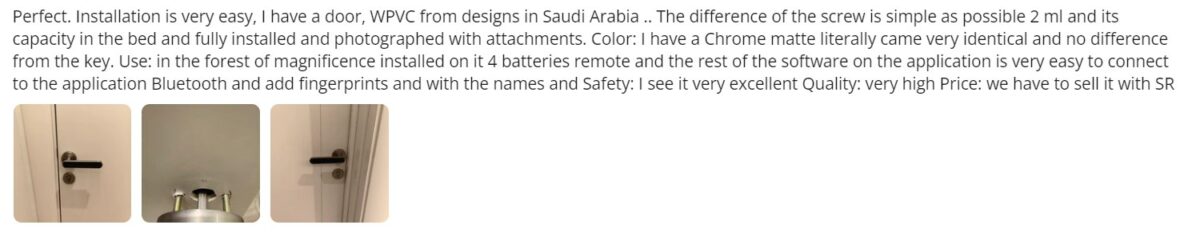

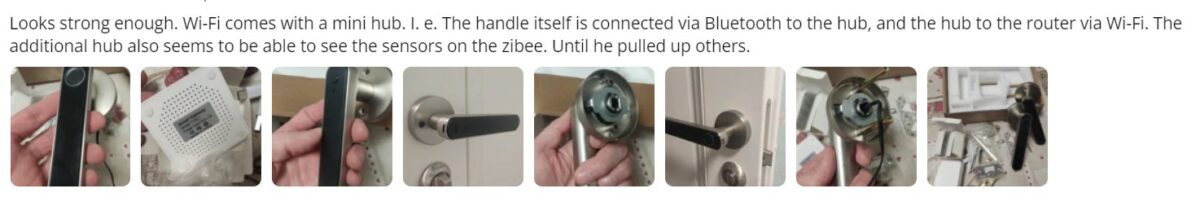

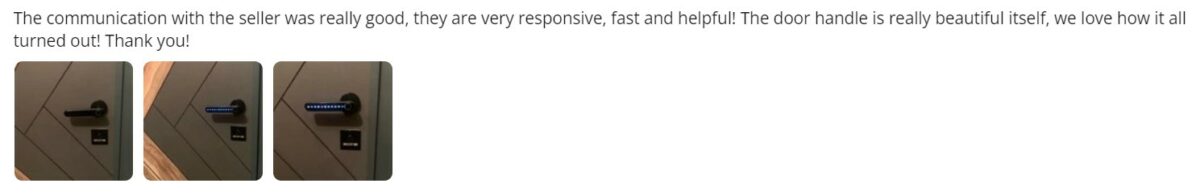

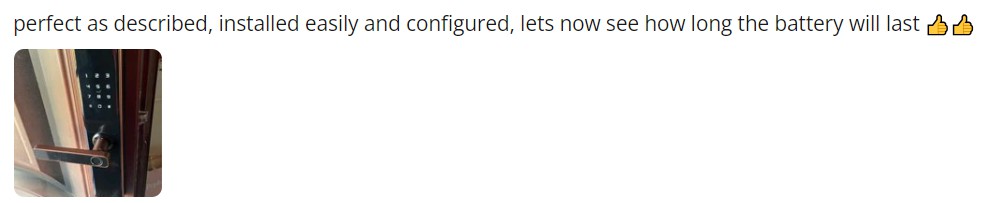

2) Client comments

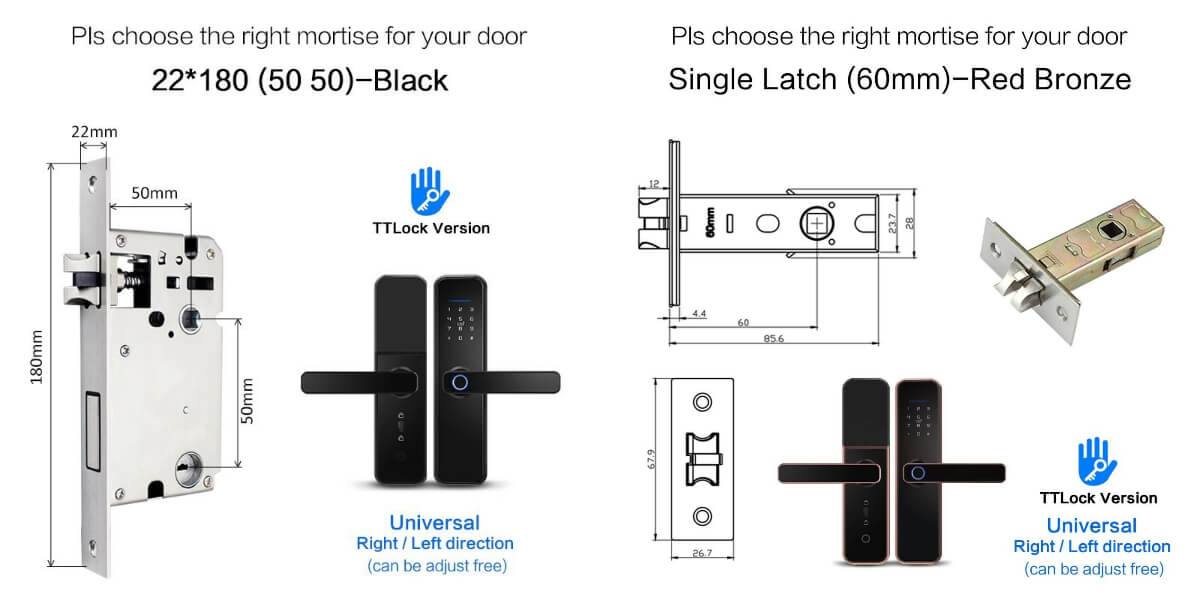

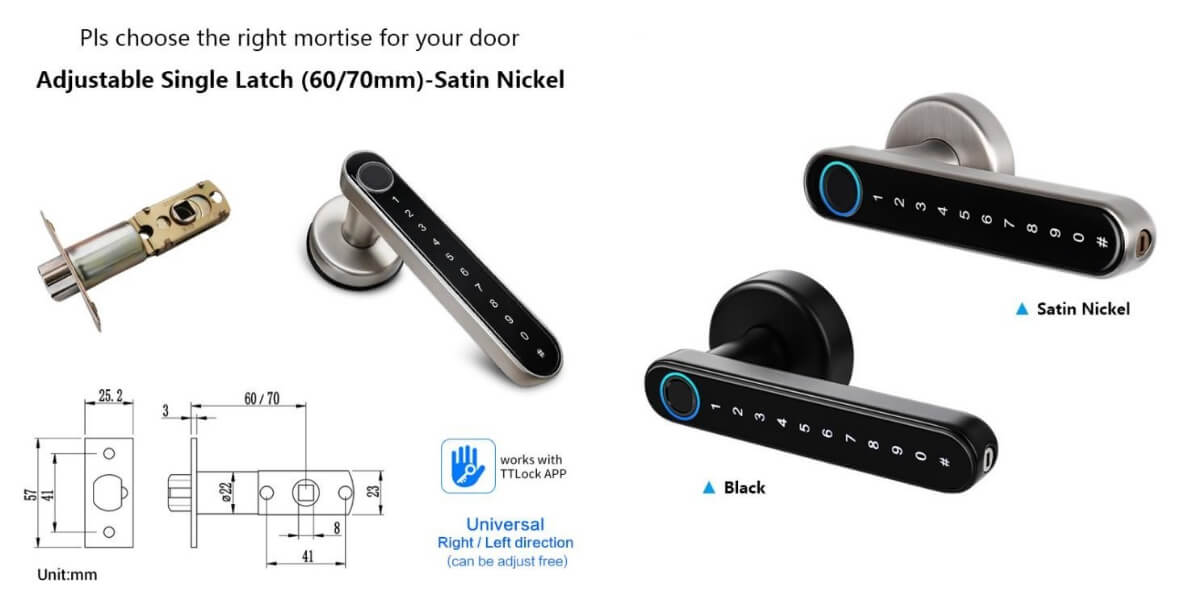

The A201 is a classic room door lock design that was introduced to the market in 2020. Its annual sales quantity has exceeded 50,000 units. There are two available versions: a single latch and the Euro mortise. Both versions come in either a Black Nickel or Silver Nickel finish.

The single latch version can be directly installed in place of a traditional mechanical knob set without any additional holes needing to be drilled. With only a screwdriver, the mechanical lock can be replaced in just 10 minutes. It is widely used in North America, Latin America, Australia, South Asia, and other regions.

The Euro standard version is more complex, consisting of the 4585/5572 mortise, a lever handle, and a cylinder decoration cover. However, it can replace old Euro types of mechanical locks without the need for extra drilling. It has been highly welcomed in the Middle East, South America, and European markets.

9. TTLock FAQ Guide

Before you choose TTLock smart lock, you may still have some questions. iLockey summaries some common faqs from our clients, hope it will work for you.

1) Is TTLock compatible with Google?

Happily, the TTLock smart lock can be unlocked via Google Home and Amazon Alexa. Here is a brief guide to help you add TTlock with Google Home.

• Install the Google Home APP and Hub on your mobile phone
• Click the “+” add button in the upper left corner of the app
• On the Set Up Device page, select “Work with Google” on the Manage Account page.
• On the authorization page, search for “ScienerSmart” and enter your TTLock account.
• Set up Google Home security code in TTLock APP. When unlocking Google Home with this code, you will be prompted to enter it.

Here is a video guide we found on YouTube, you can clearly know how to do it.

2)  How to connect TTLlock to WIFI?

TTLock connects to WIFI via the gateway,  now gateway 2 is the main tool. To set the Gateway 2, you can also find some video tutorials on YouTube. Here we make G2 as a sample, to make a brief word guide to help you connect TTLock to WIFI.

• Open TTLock App –>Click the side menu –>Select Gateway -> Tap ‘+’ –> Select G2
• Plug the gateway into a USB power source. You should make sure the light flashes red and blue alternately.
• Then, back in the app, tap the “+” next to the discovered gateway.
• Select the correct “Wi-Fi Name”. Make sure this is your 2.4GHz network.
• Enter the Wi-Fi Password for the selected network.
• Enter a “Gateway Name” to identify your gateway (e.g. “Primary Gateway”)
• Click OK. It takes about a few minutes to complete the setup.
• Once the gateway is configured, it will automatically search for nearby locks. Please note, that your smart door lock should be within Bluetooth range (3-7 meters) of this Wi-Fi Gateway. If not, you’ll have to move the Wi-Fi gateway closer to the smart door lock.

4) How to add TTLock to Amazon Alexa?

Amazon Alexa allows you to control your smart lock with your voice, so this guide will include two sections, connect TTLock to Alexa, and set Voice Unlocking. Let’s start:

1) Connect the TTLock account to Amazon Alexa

• Sign in to your Amazon Alexa app
• Go to “Skills and Games”
• Search for “TTLock”
• Click “Enable to use”
• Enter your TTLock account username and password

2) Control your smart door lock with your voice

• Go to “Devices” –>Go to “Locks”
• Select the smart door lock you want to control. Let’s say your lock’s name is “Front Door”.
• Go to Settings –> Enable “Voice Unlock”
• Create your voice code and enter your Amazon password

The setup is now complete. Now you can tell Alexa – “Alexa, unlock the front door” or “Alexa, lock the front door”

4) What is the alternative to TTLock?

Tuya, actually Tuya is more popular than TTLock. Compared to TTLock, Tuya can be compatible with other smart home devices. TTLock now just supports smart lock, that is the main disadvantage. If you are interested in Tuya, please read this guide: Tuya 101: A Full Guide

10. Conclusion

Up to now, there are still many users will mix TTLock and TTLock App, they think it is the same thing. In fact, TTLock has developed many products, TTLock App is the core product. With the development of smart homes, the smart keyless lock will be more and more popular, TTLock will still keep updating its hardware and software, iLockey will keep recording. We hope this TTlock definitive guide was helpful to you. If you still have any questions about TTLock or need advice on choosing a TTLock smart lock, please feel free to contact us.
